Запчасти Case IH 3330 (35.114.07) - VALVE, SOLENOID (35) - HYDRAULIC SYSTEMS

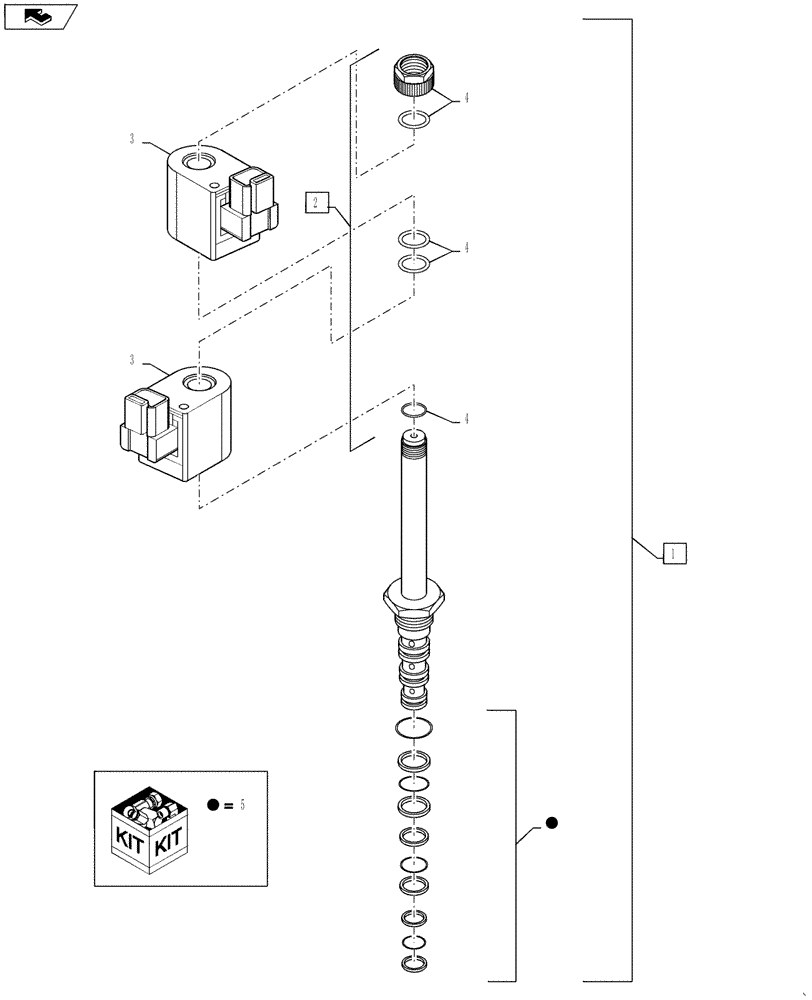

Схема запчастей Case IH 3330 - (35.114.07) - VALVE, SOLENOID (35) - HYDRAULIC SYSTEMS
5
2
home
1
4
5
4
4
3
5
3

Артикул

Название

Примечание

Количество

1

87758319

SOLENOID VALVE

With Coil, Without Fittings, Axle Adjust

1шт.

2

87758999

VALVE

SOLENOID, Includes Ref 4

1шт.

3

87758997

COIL

2шт.

4

87758998

RETAINER

Nut, Coil, SV08 With O-ring

1шт.

5

87472227

SEAL KIT

SOLENOID VALVE

1шт.

1

84198497

SOLENOID VALVE

Closed Center

1шт.

2

87758996

SOLENOID VALVE

Includes Ref 4

1шт.

3

87758994

COIL

2шт.

4

87758995

RETAINER

NUT, COIL

1шт.

5

87472228

SEAL KIT

SOLENOID VALVE

1шт.

Выбрано товаров: 10
