(35.114.06[01]) - VALVE, PRODUCT CONTROL, BSN YBT031316

Запчасти Case IH 3330 (35.114.06[01]) - VALVE, PRODUCT CONTROL, BSN YBT031316 (35) - HYDRAULIC SYSTEMS

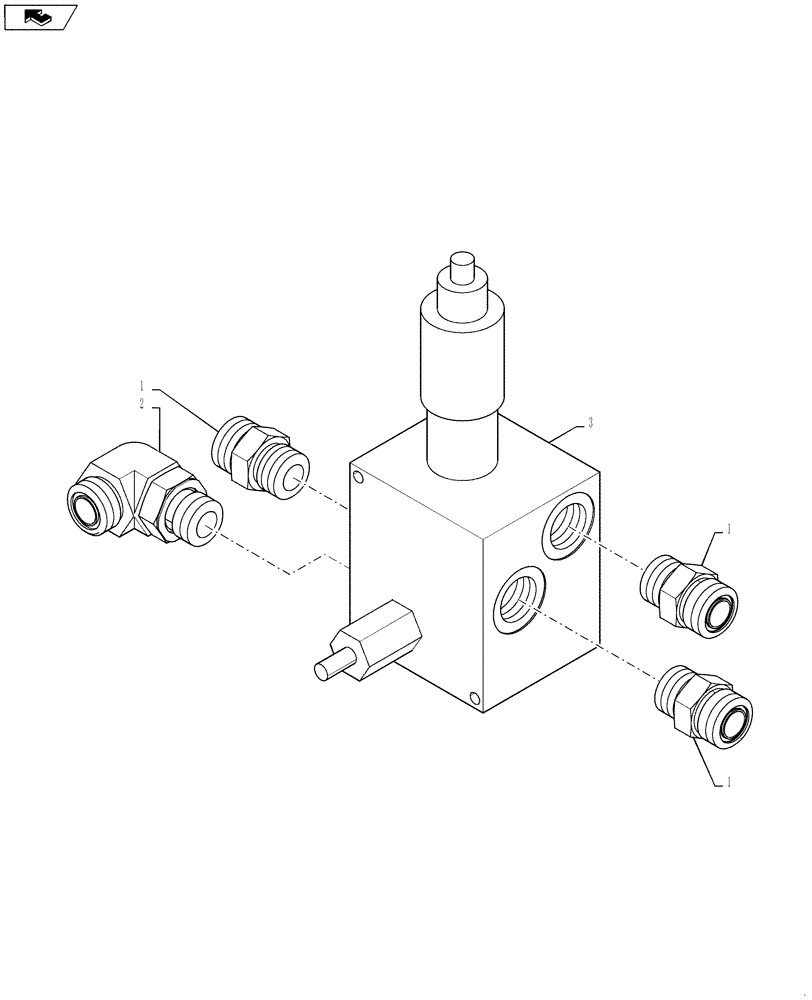

Схема запчастей Case IH 3330 - (35.114.06[01]) - VALVE, PRODUCT CONTROL, BSN YBT031316 (35) - HYDRAULIC SYSTEMS
3
2
1
1
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

2

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Shown, ORFS For BN302652

1шт.

3

342100A1

VALVE

Product, With Fittings

1шт.
