Запчасти Case IH 3330 (35.114.01) - VALVE, 2-BANK (35) - HYDRAULIC SYSTEMS

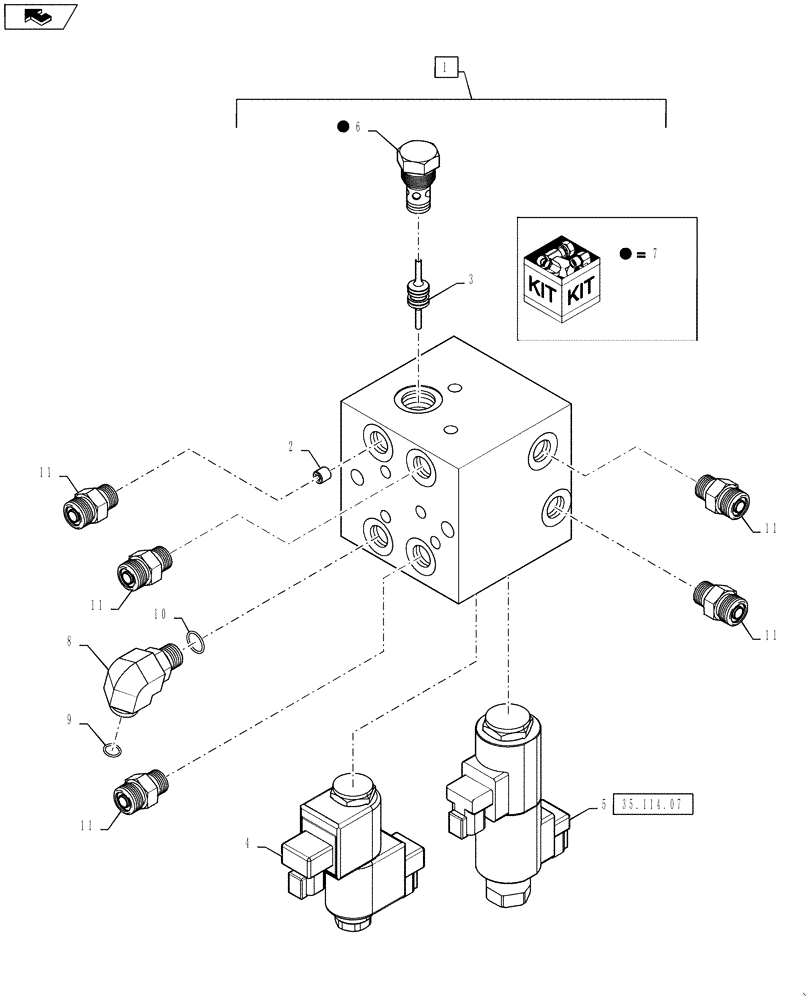

Схема запчастей Case IH 3330 - (35.114.01) - VALVE, 2-BANK (35) - HYDRAULIC SYSTEMS
9
1
10
8
11
4
2
11
3
11
5
8
home
11
11
35.114.07
7
7
6

Артикул

Название

Примечание

Количество

1

87393142

CONTROL VALVE

2-Bank Without Fittings, Start Year: 01-JAN-09

1шт.

1

87270617

VALVE

2 Bank Without Fittings, Years: -01-JAN-09

1шт.

2

87758323

ORIFICE

.039

1шт.

3

87758337

PISTON

VALVE BANK

1шт.

4

87758319

SOLENOID VALVE

With Coil, Axle Adjust

1шт.

5

84198497

SOLENOID VALVE

With Coil, Boom Height

1шт.

6

87758336

VALVE

Check

2шт.

7

87472226

SEAL KIT

VALVE

1шт.

8

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

5шт.

Выбрано товаров: 12
