(33.204.02[02]) - DYNAMIC BRAKE GROUP, USED ON SN YBT029141 AND AFTER

Запчасти Case IH 3330 (33.204.02[02]) - DYNAMIC BRAKE GROUP, USED ON SN YBT029141 AND AFTER (33) - BRAKES & CONTROLS

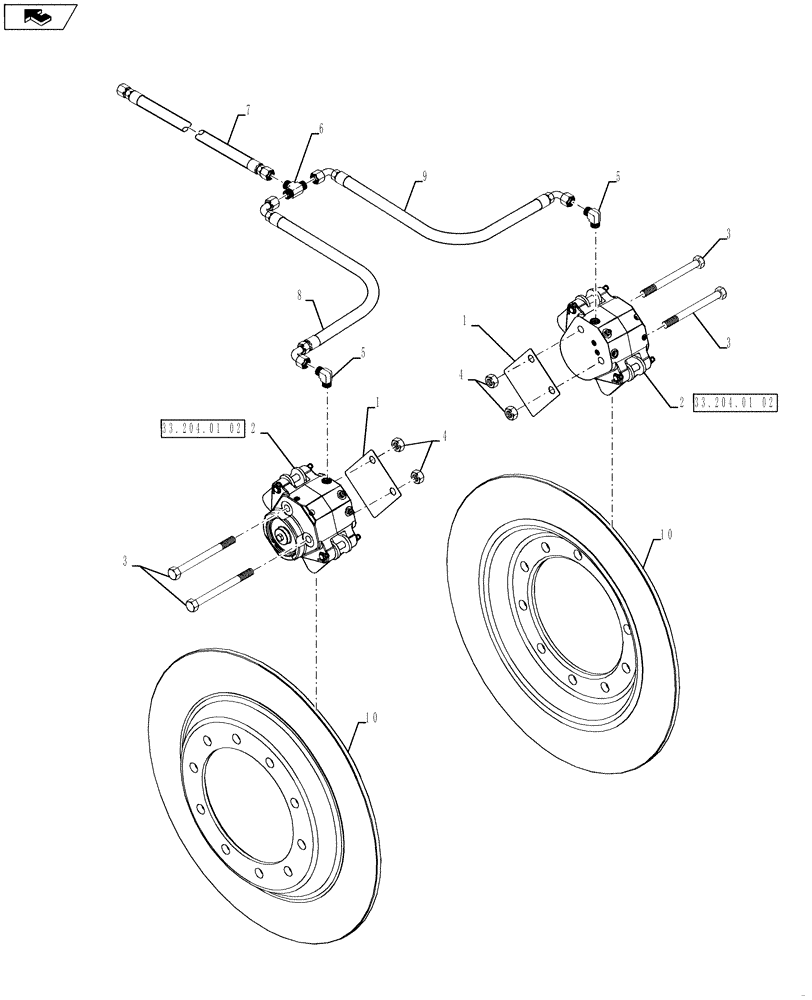

Схема запчастей Case IH 3330 - (33.204.02[02]) - DYNAMIC BRAKE GROUP, USED ON SN YBT029141 AND AFTER (33) - BRAKES & CONTROLS
6
9
5
10
4
home
2
1
1
10
33.204.01 02
8
33.204.01 02
3
7
3
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84340467

SPACER

Brake Caliper

2шт.

2

87493788

BRAKE CALIPER

Disc Brake

2шт.

See Fig 33.204.01(02) For Service Parts Breakdown

1шт.

3

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

4

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

5

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

2шт.

6

BN302511

FITTING

9/16" -18 ORFS

1шт.

7

BN307827

HOSE ASSY.

-4 x 92"

1шт.

8

BN307829

HOSE ASSY.

-4 x 3924.3mm

1шт.

9

BN324552

HOSE ASSY.

-4 x 3556mm

1шт.

10

BN301666

BRAKE DISC

27.875" Dia.

2шт.
