(33.204.01[02]) - BRAKE CALIPER ASSEMBLY, USED ON SN YBT029141 AND AFTER

Запчасти Case IH 3330 (33.204.01[02]) - BRAKE CALIPER ASSEMBLY, USED ON SN YBT029141 AND AFTER (33) - BRAKES & CONTROLS

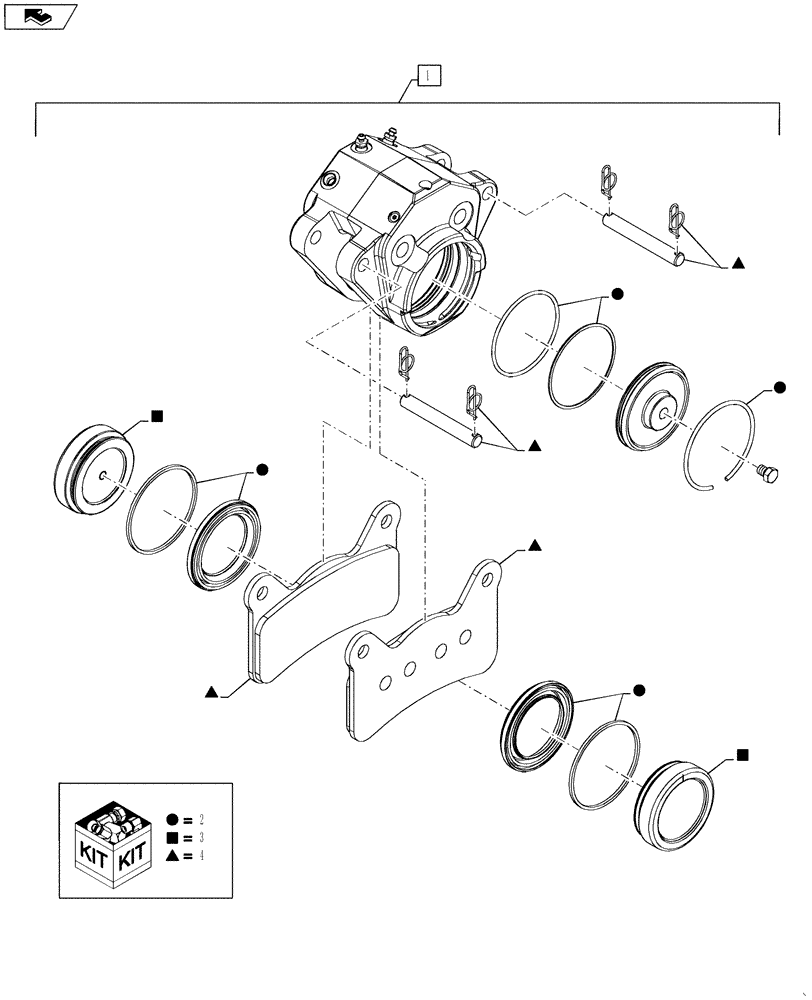

Схема запчастей Case IH 3330 - (33.204.01[02]) - BRAKE CALIPER ASSEMBLY, USED ON SN YBT029141 AND AFTER (33) - BRAKES & CONTROLS
2
4
4
2
4
3
4
home
1
2
2
2
3
2
3
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493788

BRAKE CALIPER

Disc Brake

1шт.

2

84340351

SERVICE KIT

Seal Kit, Includes Piston Boots, Square Rings, O-rings, Backup Rings, and C-rings

1шт.

3

84340352

SERVICE KIT

Piston Kit

1шт.

4

84340350

SERVICE KIT

Includes Stator Pads, Stator Pins, and Rue Clips

1шт.
