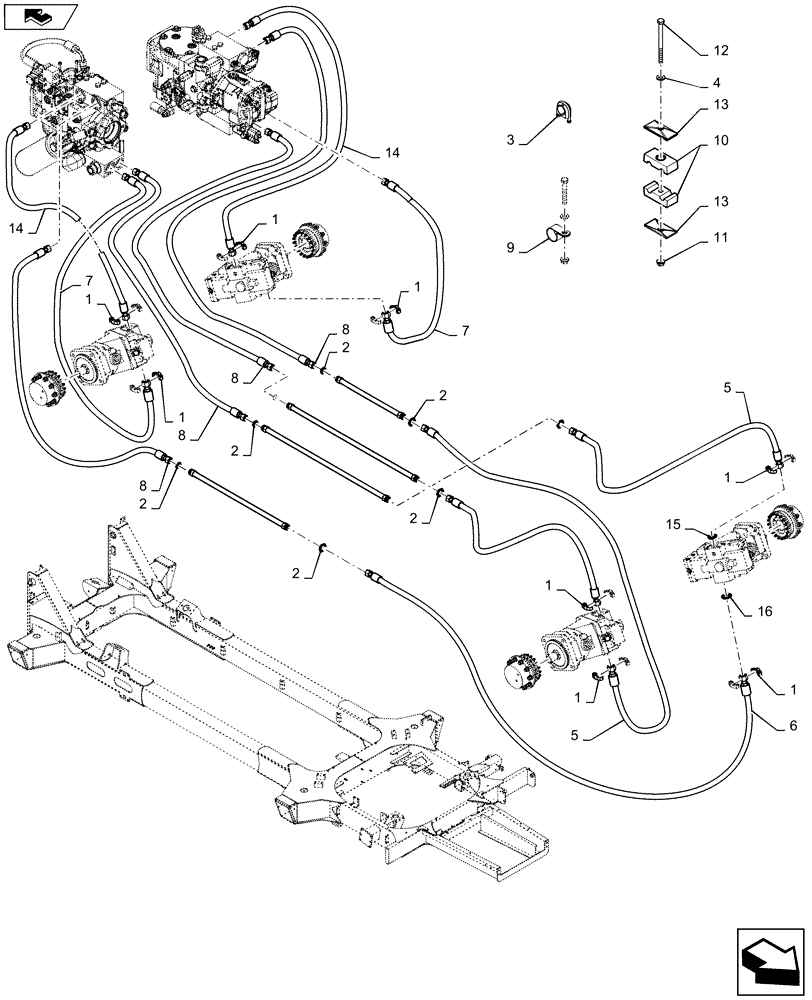

Запчасти Case IH 3330 (29.212.02) - HYDRAULIC DRIVE LOOP GROUP (29) - HYDROSTATIC DRIVE

1

87270171

REPAIR KIT

3/4 CODE 62 METRIC

8шт.

2

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP 021 BUNA-N

8шт.

3

BN57235

CLAMP

Assy, 1"

16шт.

4

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

16шт.

5

87270912

HOSE,19.05mm ID x 2946.4mm L

12 X 116

2шт.

6

87270913

HOSE,19.05mm ID x 3175mm L

12 X 125

2шт.

7

87477280

HYDRAULIC HOSE,19mm ID x 5258mm L, SAE 100R13

12 X 207

2шт.

8

87516936

HOSE,19.05mm ID x 1574.8mm L, SAE 100R13

12 X 55

4шт.

9

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

4шт.

10

BN309849

CLAMP

DUAL, 1.25 TUBE

6шт.

11

9991588

NUT,M8 x 1.25, Cl 8

6шт.

12

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

M8-1.25 X 80, HH, 8.8, DOR

6шт.

13

1324469C1

PLATE

hose clamp

6шт.

14

87607922

HOSE,19.05mm ID x 4953mm L

12 x 195"

2шт.

15

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

16

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.
