(29.100.12[09]) - LH HYDROSTATIC PUMP, WEAR PLATE, SN YCT032640 AND AFTER

Запчасти Case IH 3330 (29.100.12[09]) - LH HYDROSTATIC PUMP, WEAR PLATE, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

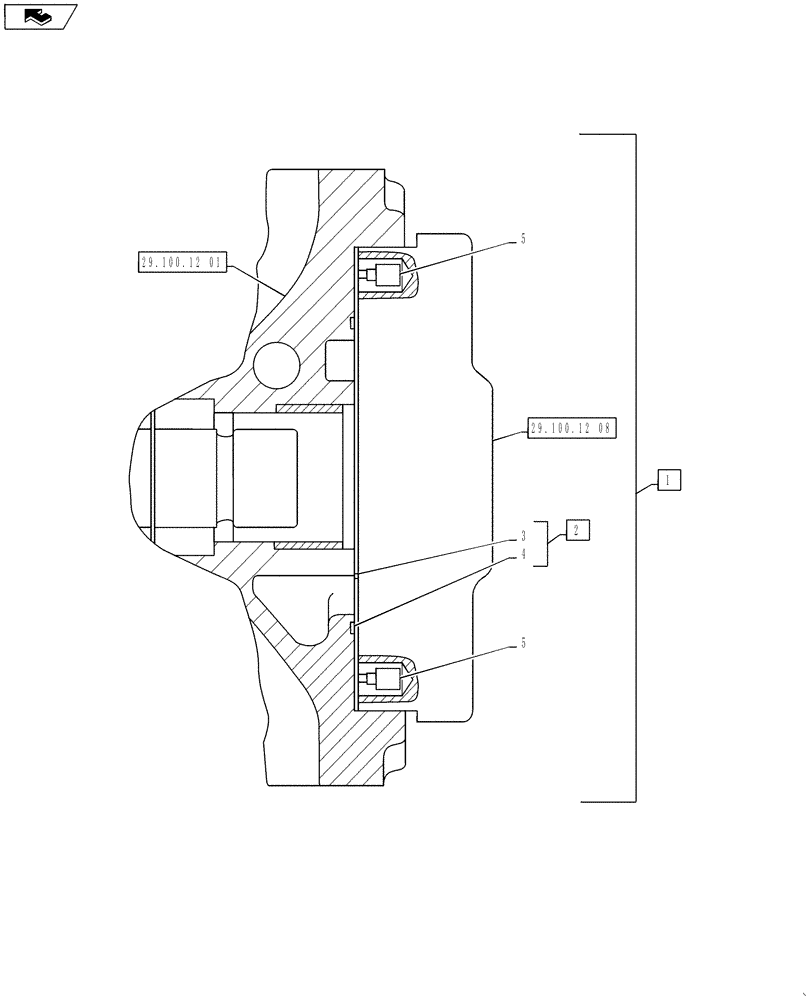

Схема запчастей Case IH 3330 - (29.100.12[09]) - LH HYDROSTATIC PUMP, WEAR PLATE, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE
2
5
4
home
1
5
3
29.100.12 08
29.100.12 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416331

HYDRAULIC PUMP

Internal Gear Pump Assembly, Incl Ref 2 - 5 And All Parts On Fig 29.100.12(08)

1шт.

1

84416331R

REMAN-HYD PUMP

3330 PATRIOT SPRAYER, Internal Gear Pump Assembly, LH, SN YCT032640 AND AFTER (11/08-)

1шт.

1

84416331C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1481989

WEAR PLATE

Incl Ref 3 - 4

1шт.

3

87758221

PLATE

Wear

1шт.

4

84254610

RING

Quad

1шт.

5

6904841

PLUG

Locking

2шт.
