(29.100.12[06]) - LH HYDROSTATIC PUMP, CHARGE PUMP PRESSURE RELIEF VALVE, SN YCT032640 AND AFTER

Запчасти Case IH 3330 (29.100.12[06]) - LH HYDROSTATIC PUMP, CHARGE PUMP PRESSURE RELIEF VALVE, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

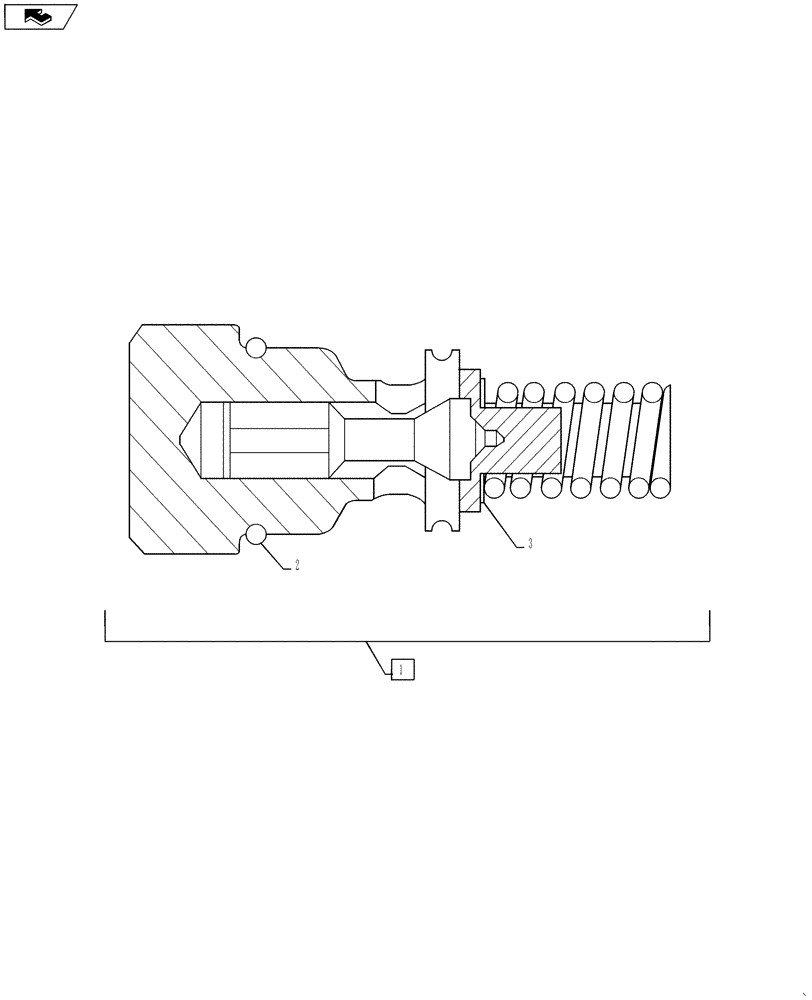

Схема запчастей Case IH 3330 - (29.100.12[06]) - LH HYDROSTATIC PUMP, CHARGE PUMP PRESSURE RELIEF VALVE, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE
2
3
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601547

VALVE

Relief, Charge Pump, 29 Bar

1шт.

2

87597286

O-RING

23.47 x 2.62mm

1шт.

3

84548441

SHIM

0.3mm

1шт.

3

84548439

SHIM

0.5mm

1шт.

3

84548435

SHIM,1mm Thk

1.0mm

1шт.
