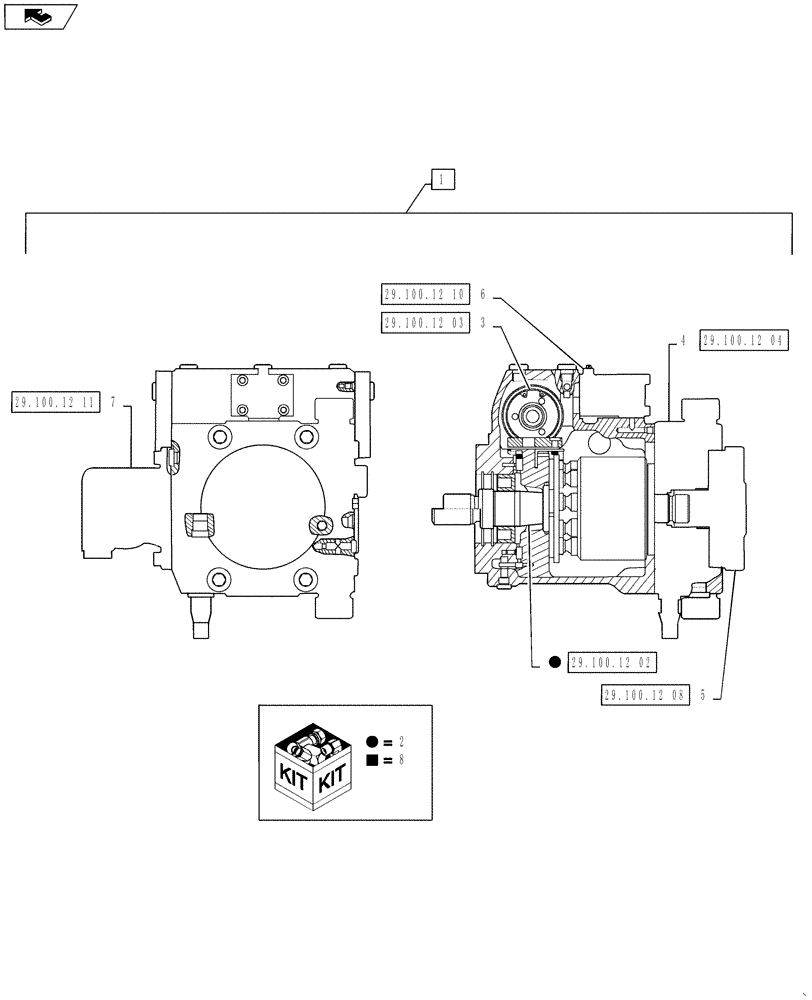

Запчасти Case IH 3330 (29.100.12[01]) - HYDROSTATIC PUMP, WITH 11 TEETH, LH MOUNTED, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84399369

HYDROSTATIC PUMP,56 CC

Complete Pump, 11 Tooth, Includes Ref 2 - 8

1шт.

1

84399369R

REMAN-HYDROSTAT PUMP

3330 PATRIOT SPRAYER, Complete Pump, 11 Tooth, SN YCT032640 AND AFTER (11/08-)

1шт.

1

84399369C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87601537

KIT

Rotary Group, Hydrostatic Pump, LH Rotation

1шт.

See Fig 29.100.12(02) For Service Parts

1шт.

3

87601538

CONTROL

Hydraulic

1шт.

See Fig 29.100.12(03) For Service Parts

1шт.

4

87601539

MOUNTING PLATE

Port, With Valves

1шт.

See Fig 29.100.12(04) For Service Parts

1шт.

5

84416331

HYDRAULIC PUMP

Internal Gear Pump Assembly

1шт.

See Fig 29.100.12(08) For Service Parts

1шт.

5

84416331R

REMAN-HYD PUMP

3330 PATRIOT SPRAYER, INTERNAL GEAR PUMP ASSEMBLY, WITH 11 TEETH, LH MOUNTED, SN YCT032640 AND AFTER (11/08)

1шт.

5

84416331C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

87601636

MODULE

Control

1шт.

See Fig 29.100.12(10) For Service Parts

1шт.

87601636R

REMAN-HYD VALVE

3330, SN YCT032640 AND AFTER, (11/08-)

1шт.

87601636C

CORE-VALVE HYD

RETURN NUMBER

1шт.

7

84554579

HYDRAULIC OIL FILTER

Charge Pump

1шт.

See Fig 29.100.12(11) For Service Parts

1шт.

8

87603571

SEAL KIT

Complete

1шт.
