Запчасти Case IH 3330 (29.100.11[10]) - RH HYDROSTATIC PUMP FILTER, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

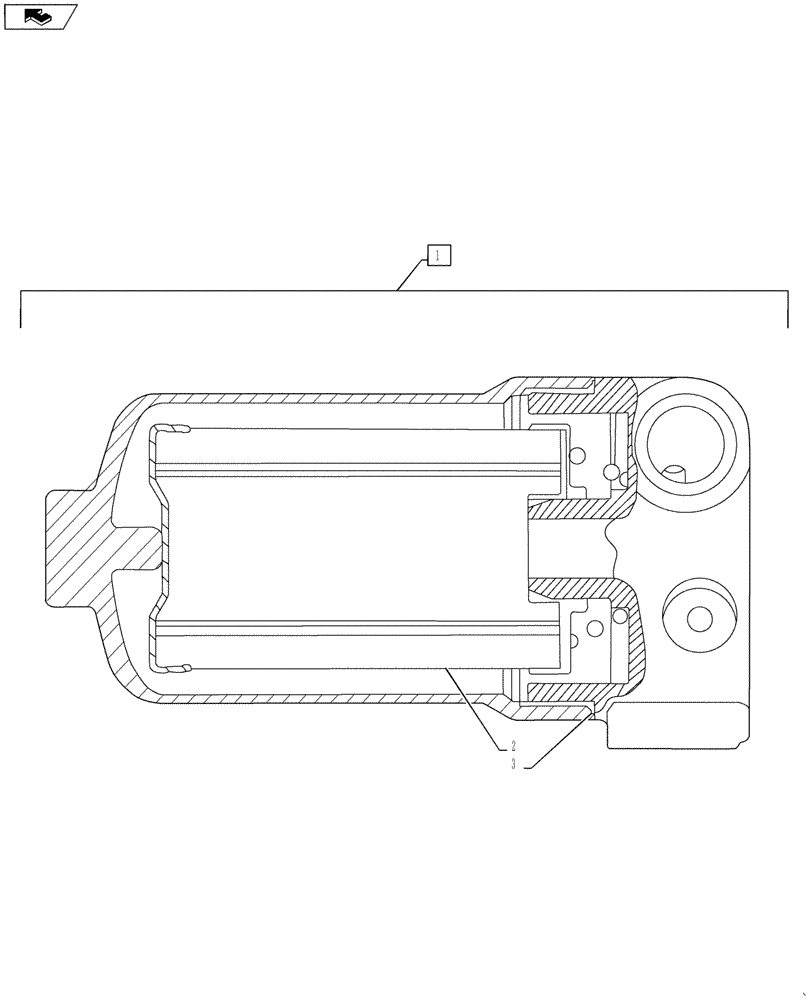

Схема запчастей Case IH 3330 - (29.100.11[10]) - RH HYDROSTATIC PUMP FILTER, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE
home
2
3
1

Артикул

Название

Примечание

Количество

1

84554579

HYDRAULIC OIL FILTER

Charge Pump, Includes Ref 2 - 3

1шт.

2

87601556

FILTER

Cartridge, 10 Micron

1шт.

3

84288754

O-RING

Filter, Charge Pump

1шт.

Выбрано товаров: 3
