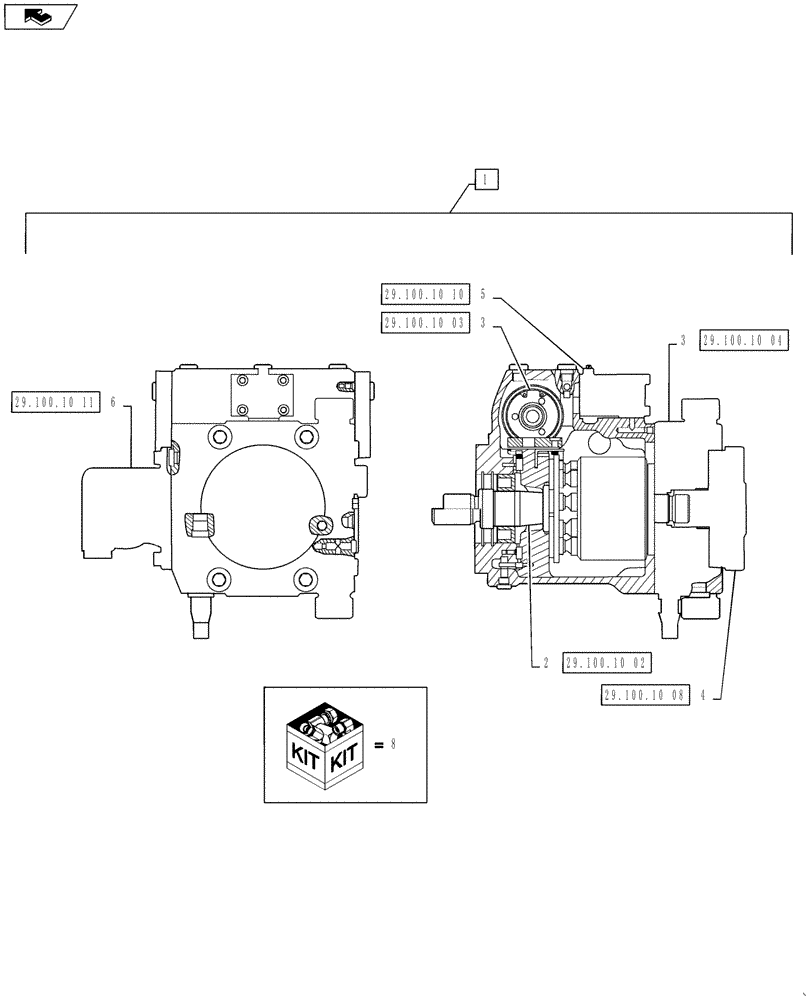

Запчасти Case IH 3330 (29.100.10[01]) - HYDROSTATIC PUMP, WITH 11 TEETH, LH MOUNTED, BSN YCT032640 (29) - HYDROSTATIC DRIVE

1

87269802

PUMP

Complete Pump, 11 Tooth, Includes Ref 2 - 8

1шт.

1

87269802R

REMAN-HYD PUMP

3300

1шт.

1

87269802C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87601537

KIT

Rotary Group, Hydrostatic Pump, LH Rotation

1шт.

See Fig 29.100.10(02) For Service Parts

1шт.

3

87601538

CONTROL

Hydraulic

1шт.

See Fig 29.100.10(03) For Service Parts

1шт.

4

87601539

MOUNTING PLATE

Port, With Valves

1шт.

See Fig 29.100.10(04) For Service Parts

1шт.

5

87601555

PUMP

Internal Gear Pump Assembly

1шт.

See Fig 29.100.10(08) For Service Parts

1шт.

6

87601636

MODULE

Control

1шт.

See Fig 29.100.10(10) For Service Parts

1шт.

87601636R

REMAN-HYD VALVE

3330, BSN YCT032640, (11/08-)

1шт.

87601636C

CORE-VALVE HYD

RETURN NUMBER

1шт.

7

87601541

FILTER

Charge Pump

1шт.

See Fig 29.100.10(11) For Service Parts

1шт.

8

87603571

SEAL KIT

Complete

1шт.
