(29.100.09[07]) - HYDROSTATIC PUMP, PRESSURE OVERRIDE VALVE, BSN YCT032640

Запчасти Case IH 3330 (29.100.09[07]) - HYDROSTATIC PUMP, PRESSURE OVERRIDE VALVE, BSN YCT032640 (29) - HYDROSTATIC DRIVE

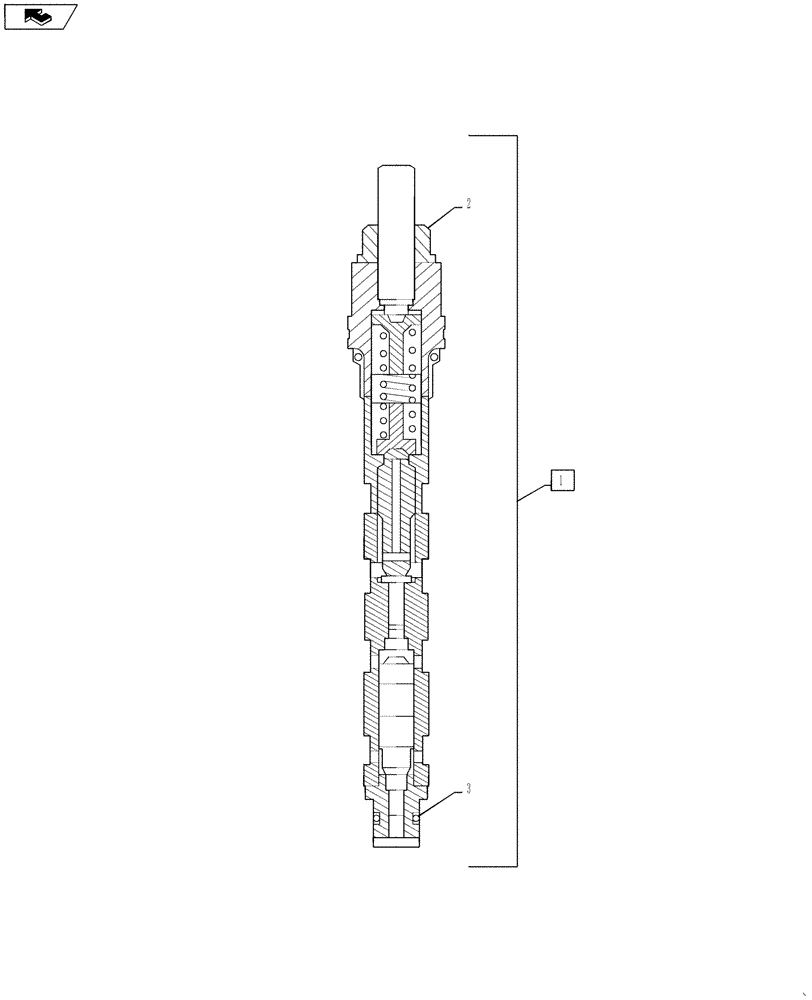

Схема запчастей Case IH 3330 - (29.100.09[07]) - HYDROSTATIC PUMP, PRESSURE OVERRIDE VALVE, BSN YCT032640 (29) - HYDROSTATIC DRIVE
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601549

HYDRAULIC VALVE

Pressure Override, Includes Ref 2 - 3

1шт.

2

87441427

LOCK NUT

Seal

1шт.

3

87650385

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Internal Seal, 6.07 x 1.78mm

1шт.
