(29.100.10[02]) - LH HYDROSTATIC PUMP ROTARY, BSN YCT032640

Запчасти Case IH 3230 (29.100.10[02]) - LH HYDROSTATIC PUMP ROTARY, BSN YCT032640 (29) - HYDROSTATIC DRIVE

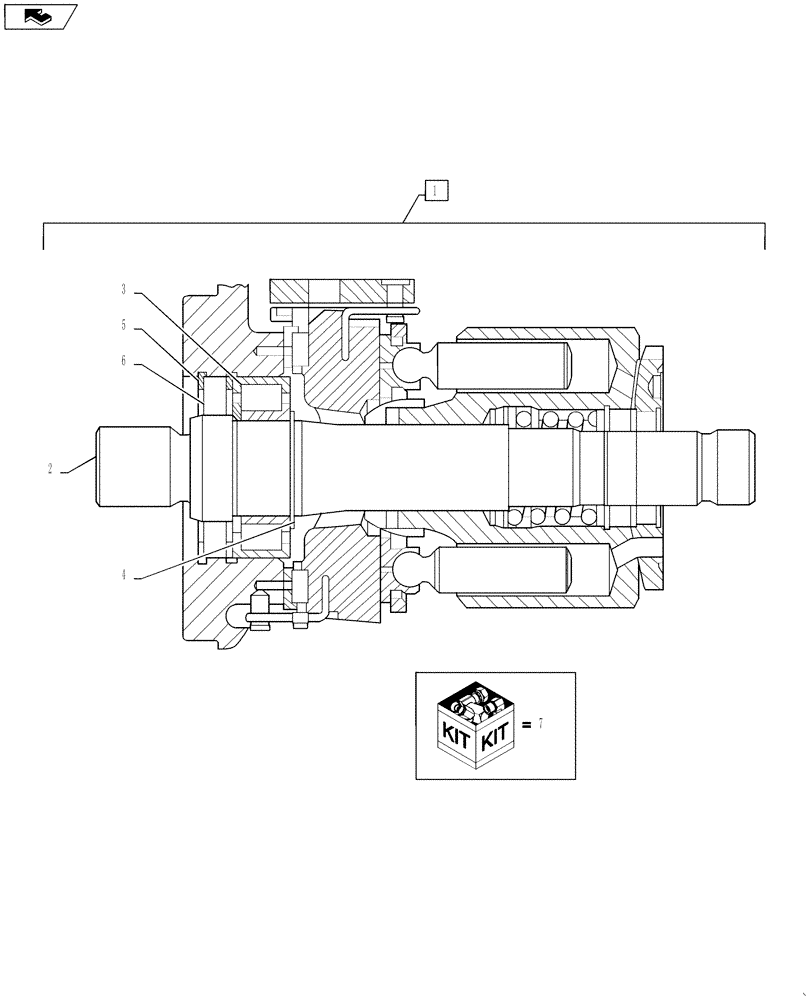

Схема запчастей Case IH 3230 - (29.100.10[02]) - LH HYDROSTATIC PUMP ROTARY, BSN YCT032640 (29) - HYDROSTATIC DRIVE
3
home
7
5
6
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601537

KIT

Rotary Group, Hydrostatic Pump, Includes Ref 2 - 7

1шт.

2

87650275

AXLE-SHAFT, ARTICULA

Drive

1шт.

3

87601543

ROLLER BEARING

Shaft

1шт.

4

87758187

RING

Retaining

1шт.

5

87601544

RING

Retaining

1шт.

6

87601545

RING

Shaft Seal

1шт.

7

87604146

SEAL KIT

Drive Shaft

1шт.
