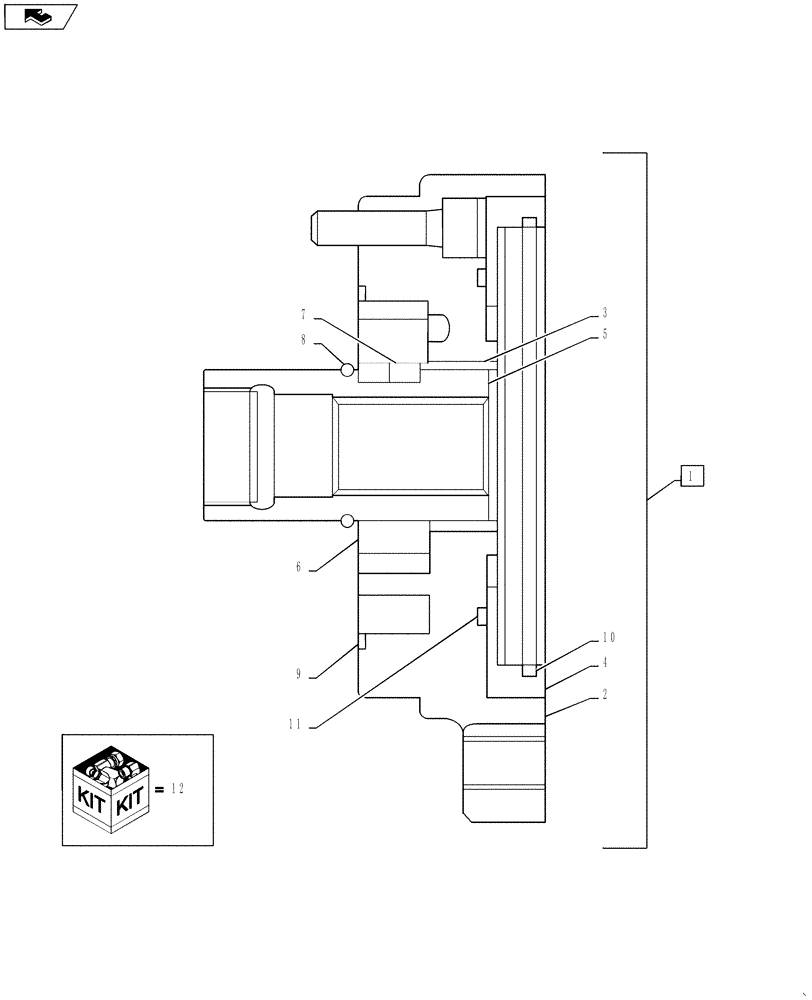

Запчасти Case IH 3230 (29.100.09[08]) - RH HYDROSTATIC PUMP, INTERNAL GEAR ASSEMBLY, BSN YCT032640 (29) - HYDROSTATIC DRIVE

1

87601540

GEAR

Internal Gear Pump Assembly, Includes Ref 2 - 12

1шт.

2

87673451

FLANGE

SAE B

1шт.

3

87601550

BUSHING

Bushing

1шт.

4

87730800

SPACER

1шт.

5

87601551

SHAFT

Through-Drive

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

87601552

KEY

Drive Shaft

1шт.

8

87601553

SNAP RING

Drive Shaft

1шт.

9

84254610

RING

Quad

1шт.

10

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

11

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

12

87758211

SEAL KIT

Internal Gear Pump

1шт.
