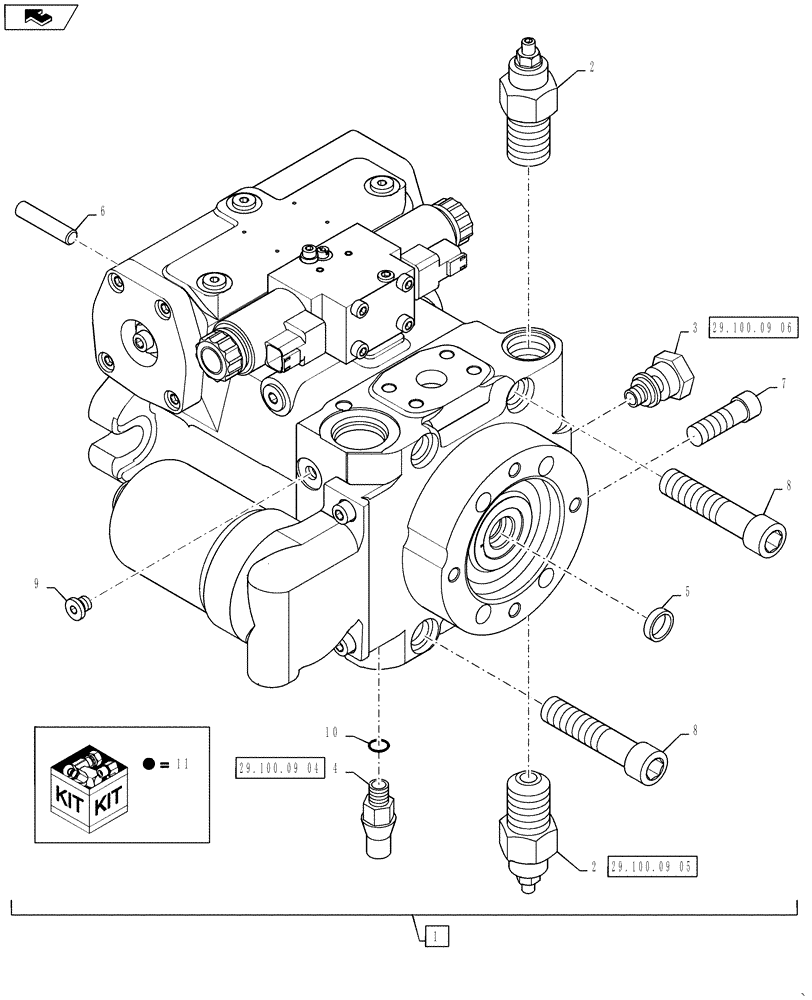

Запчасти Case IH 3230 (29.100.09[04]) - RH HYDROSTATIC PUMP PORT PLATES WITH VALVES, BSN YCT032640 (29) - HYDROSTATIC DRIVE

1

84578941

PLATE

Port, With Valves, Includes Ref 2 - 11

1шт.

2

87601546

VALVE PRESSURE RELIE

Port Plate, 450 Bar

2шт.

See Fig 29.100.09(05) For Service Parts

1шт.

3

87601547

VALVE

Relief, Charge Pump, 29 Bar

1шт.

See Fig 29.100.09(06) For Service Parts

1шт.

4

87601549

HYDRAULIC VALVE

Pressure Override

1шт.

See Fig 29.100.09(07) For Service Parts

1шт.

5

87758213

BUSHING

Pump Shaft

1шт.

6

87650369

PIN

M6 x 12

2шт.

7

87758207

BOLT

M8 x 1

1шт.

8

87758201

BOLT

M14 x 70

4шт.

9

87516835

PLUG

7/16 - 20

2шт.

10

87477180

O-RING

Port Plate Seal, 0.103" x 5.487"

1шт.

11

87603572

SEAL KIT

Port Plate

1шт.
