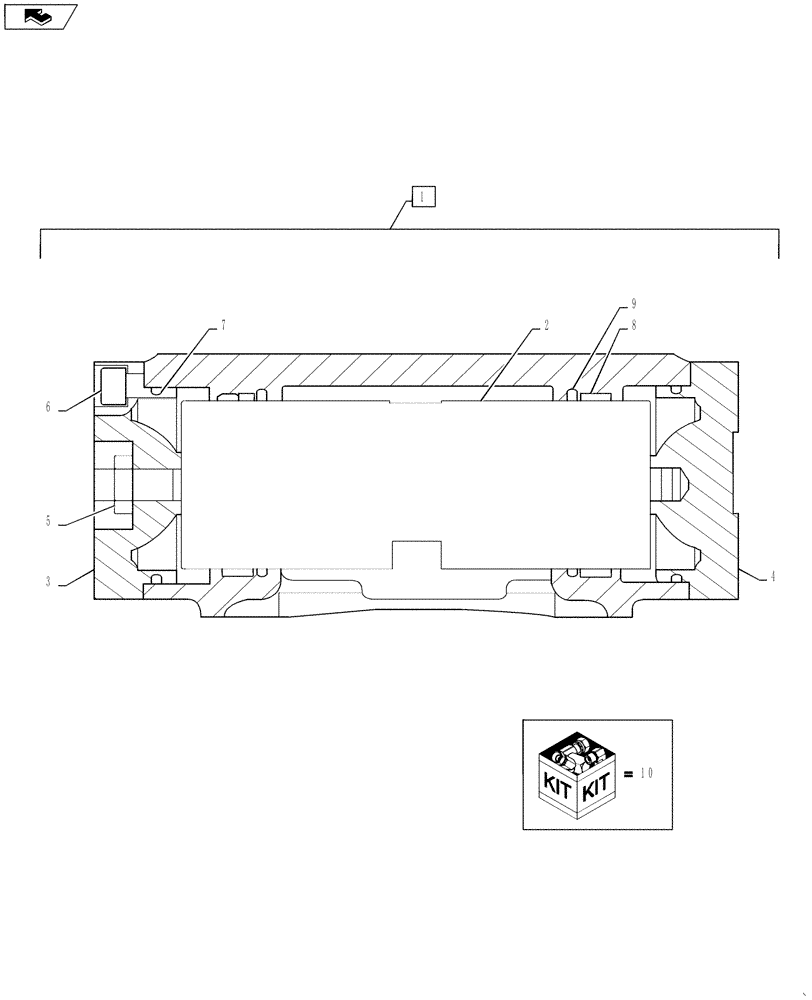

Запчасти Case IH 3230 (29.100.09[03]) - RH HYDROSTATIC PUMP CONTROL, BSN YCT032640 (29) - HYDROSTATIC DRIVE

1

87601538

CONTROL

Hydraulic, Includes Ref 2 - 10

1шт.

2

87758191

CONTROL UNIT

Positioning Piston

1шт.

3

87758192

COVER

End

1шт.

4

87758193

COVER

End

1шт.

5

87516843

NUT

M12 x 1.5

1шт.

6

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

8шт.

7

87758194

O-RING,64.77mm ID x 2.62mm Width

2шт.

8

87758195

RING

Guide

2шт.

9

87758196

SEAL KIT

O-Ring, 61 x 68.3 x 3.1

2шт.

10

87604145

SEAL KIT

Complete

1шт.
