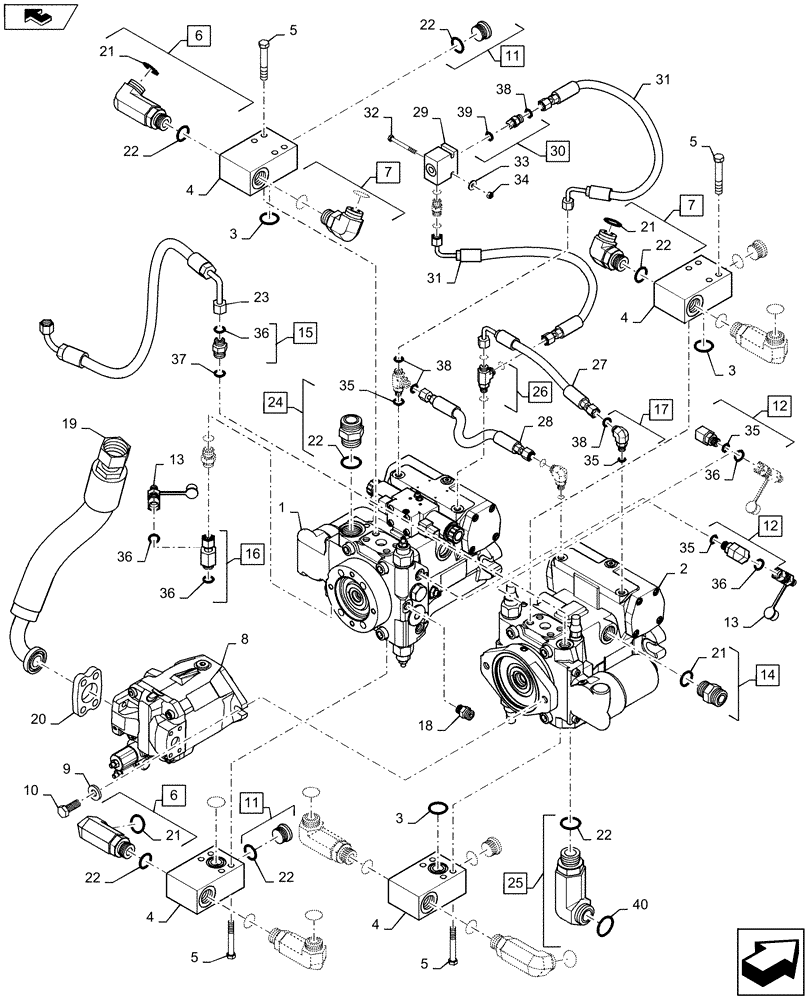

Запчасти Case IH 3230 (29.100.08[02]) - HYDROSTATIC PUMP GROUP, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84399369

HYDROSTATIC PUMP,56 CC

HYD W/11 T, LH Mounted

1шт.

See Fig 29.100.12(01) For Service Parts

1шт.

1

84399369R

REMAN-HYDROSTAT PUMP

3230 PATRIOT SPRAYER, HYD W/11 T, LH Mounted, SN YCT032640 AND AFTER (7/09-)

1шт.

1

84399369C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

84399370

HYDROSTATIC PUMP,56 CC

HYD W/13 T, RH Mounted

1шт.

See Fig 29.100.11(01) For Service Parts

1шт.

2

84399370R

REMAN-HYDROSTAT PUMP

3230 PATRIOT SPRAYER, HYD W/13 T, RH Mounted, SN YCT032640 AND AFTER (7/09-)

1шт.

2

84399370C

CORE-HYDROSTAT PUMP

Return Number

1шт.

3

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

4шт.

4

87270155

MANIFOLD

Drive Lines

4шт.

5

87342782

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 x 2-3/4", 5, DOR

16шт.

6

BN302423

ELBOW

12 MOR 12 MB X 90LL

6шт.

7

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

8

BN316492

PUMP,28 CC

PRES COMP. 1.16

1шт.

8

BN316492R

REMAN-HYD PUMP

3230 SN YCT032640 AND AFTER (7/09-)

1шт.

8

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

2шт.

10

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

Hex, 1/2"-13 x 1 1/4, G8

2шт.

11

218-5212

PLUG,1-1/16" - 12 ORB

Incl 22

4шт.

12

BN302551

FITTING

6 MOR 4MB X 90

4шт.

13

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC, 6F FOR

5шт.

14

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

15

BN302647

FITTING

6 MOR 8MB

2шт.

16

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

1шт.

17

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

2шт.

18

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

19

343888A1

HOSE

20 x 20"

1шт.

20

BN316599

REPAIR KIT

1-1/4 SPLIT FLGE CO 61

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Not Shown, ORB For BN302568

10шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Shown, ORFS For BN302568

15шт.

23

87517431

HOSE

6 X 28

1шт.

24

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB, Inc 22, 40

1шт.

25

BN302424

ELBOW

1-7/16" -12 ORFS x 1-5/16" -12 ORB, Inc 22, 40

1шт.

26

BN302580

FITTING

4 MOR 4 MOR 4MBX

2шт.

27

BN307884

HOSE

1шт.

28

87271202

HOSE

4 X 11.5

1шт.

29

87544312

VALVE

SHUNT DEUTSCH 4SAE

1шт.

Refer to 35.114.03

1шт.

30

BN302641

FITTING

9/16 -18 ORFS x 7/16 -20 ORB

2шт.

31

84566665

HOSE ASSY.

-4 x 600mm

1шт.

32

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

M6-1 x 60, 8.8, DOR

2шт.

33

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

34

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

4шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

8шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

38

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

40

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
