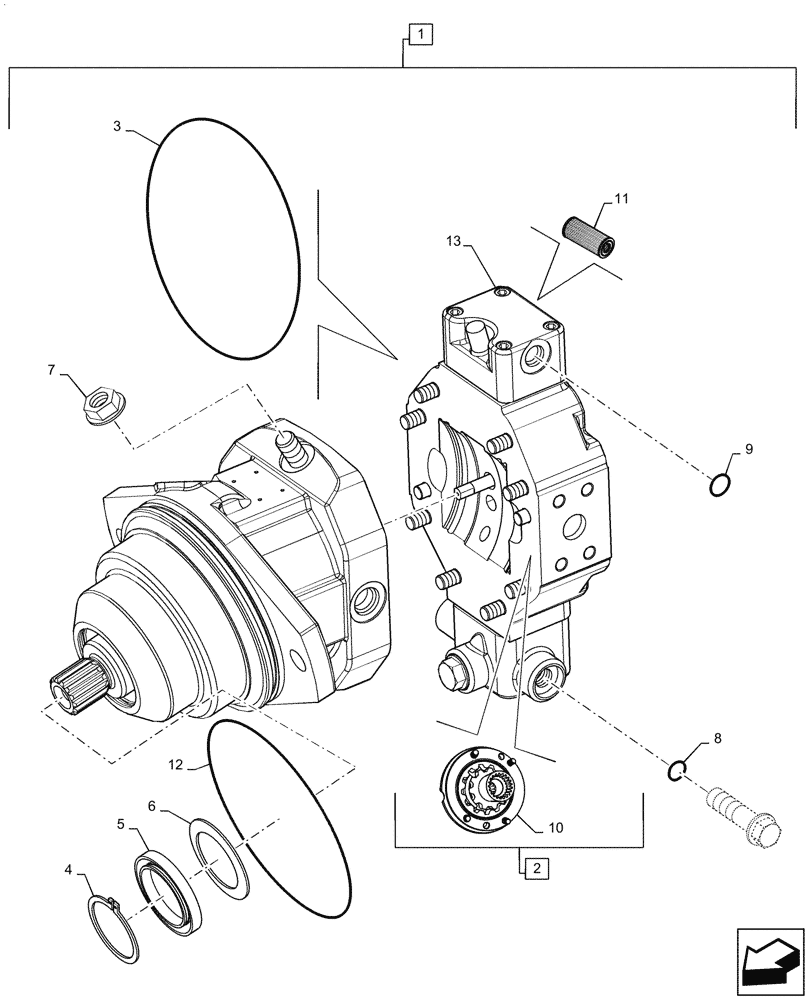

Запчасти Case IH 3230 (29.100.05[04]) - WHEEL MOTOR BREAKDOWN, SN YCT032640 AND AFTER (29) - HYDROSTATIC DRIVE

1

84476649

HYDRAULIC MOTOR,55CC

Wheel, 55cc, Includes Ref 2 - 11

1шт.

84476649R

REMAN-HYD MOTOR

Reman Wheel, 55cc, Includes Ref 2 - 11

1шт.

84476649C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

87603547

CONTROL

Wheel Motor, Includes Ref 10- 11

1шт.

3

87603553

O-RING

Wheel Motor Control Seal

1шт.

4

87603550

RING

Retaining

1шт.

5

87603551

SEAL

Shaft

1шт.

6

87603552

PLATE

Back Up

1шт.

7

47547962

NUT

2шт.

8

47547937

O-RING

1шт.

9

47547954

O-RING

1шт.

10

87603555

GEAR SET

Control, Included in Ref 2

1шт.

11

87603556

CARTRIDGE

Flush And Boost Pressure, 20 Micron, Included in Ref 2

1шт.

12

87603554

O-RING,4mm Thk x 150mm ID, 75 Duro

Wheel Motor to Planetary

1шт.

13

48083253

CONTROL VALVE

Displacement Control Block

1шт.
