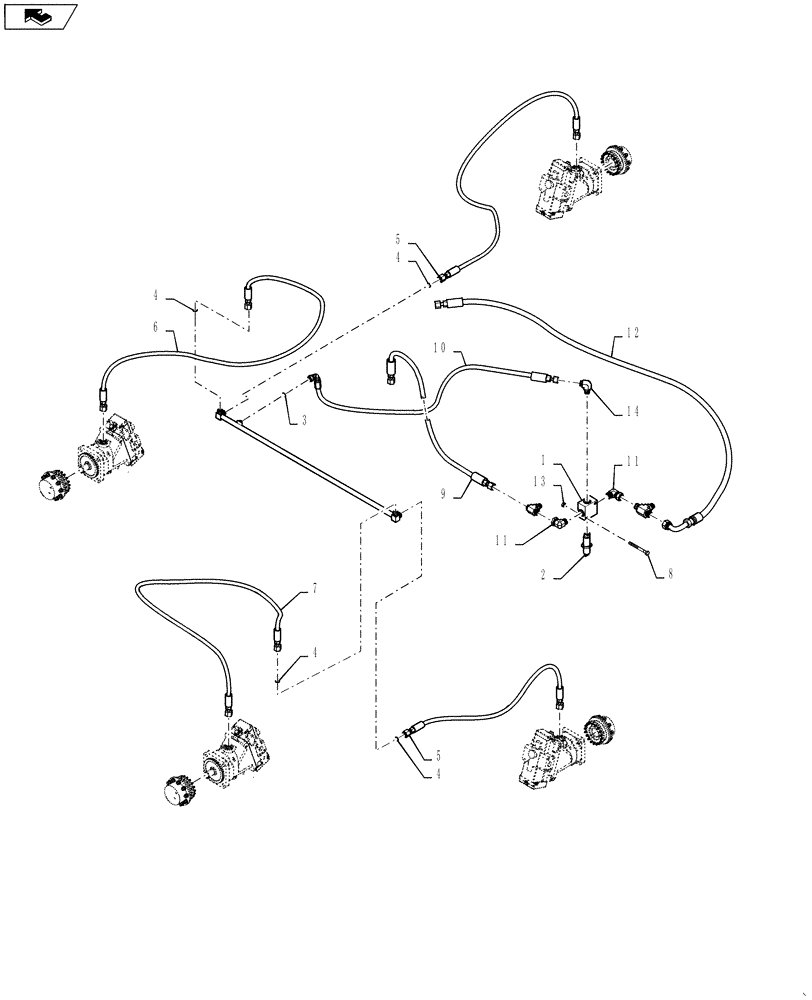

Запчасти Case IH 3230 (29.100.04) - DRIVE CONTROL HYDRAULIC GROUP (29) - HYDROSTATIC DRIVE

1

87269798

HYDRAULIC VALVE

MANIFOLD SHIFT, Incl 2

1шт.

2

87601672

HYDRAULIC VALVE

Cartridge

1шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

5

87574767

HOSE

-6 X 178", LH Front, LH Rear

2шт.

6

87271558

HOSE

-6 X 146", RH Rear

1шт.

7

87574766

HOSE

-6 X 142", RH Front

1шт.

8

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

2шт.

9

87720272

HOSE ASSY.

-6 X 76", To Left Hydro Pump

1шт.

10

BN316442

HOSE ASSY.

-4 X 60", Steel Line to Valve

1шт.

11

BN324682

FITTING

-6 FOR 6MB X 90

2шт.

12

87269785

HOSE ASSY.

-6 x 82", To Tee on Gear Pump

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

14

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.
