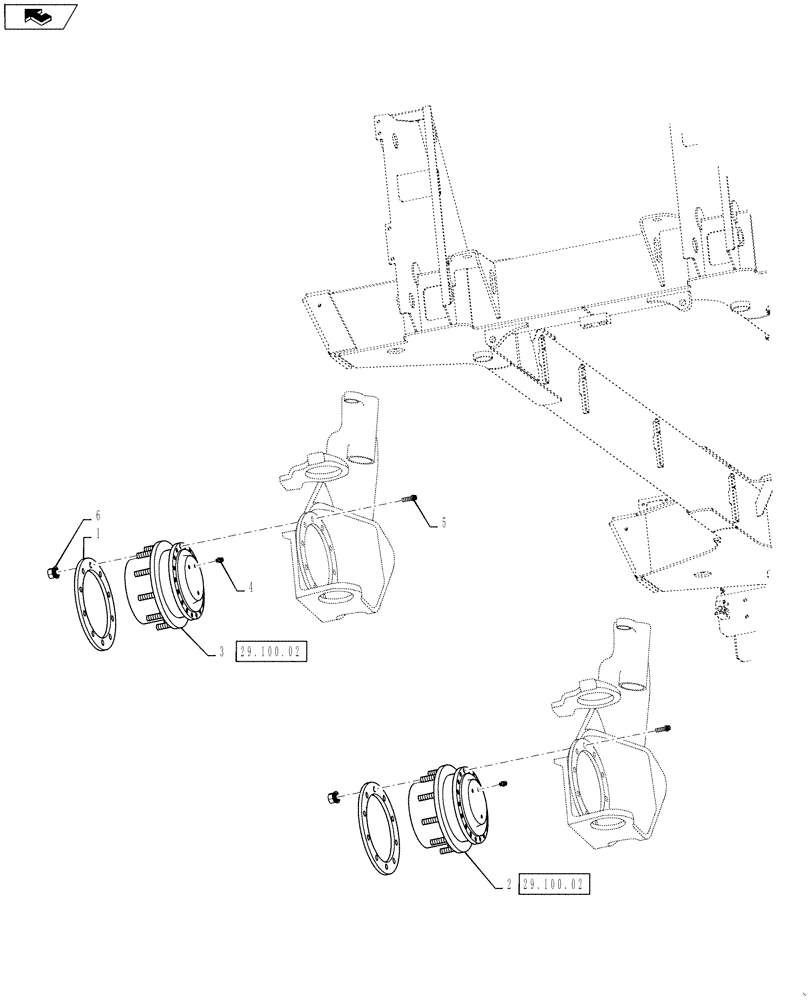

Запчасти Case IH 3230 (29.100.01) - GEAR RATIO GROUP (29) - HYDROSTATIC DRIVE

1

BN306152

SPACER

WHEEL HUB

2шт.

2

87269800

GEARBOX

Planetary 25.2:1, BSN YAT027194

2шт.

84280675R

REMAN-GEARBOX

3230 (BSN YAT027194) (7/09-), Reman For New P/N 87269800

2шт.

84280675C

CORE-GEARBOX

Return Number

1шт.

2

84280675

GEARBOX

Planetary 25.2:1, Used on SN YAT027194 and After

2шт.

84280675R

REMAN-GEARBOX

3230 (Used on SN YAT027194 AND AFTER) (7/09-)

2шт.

84280675C

CORE-GEARBOX

Return Number

1шт.

3

87269801

GEARBOX

Planetary 31:1, BSN YAT027194

2шт.

87269801R

REMAN-GEARBOX

3230 BSN YAT027194,

2шт.

87269801C

CORE-GEARBOX

Return Number

1шт.

3

84280676

GEARBOX

Planetary 31:1, Used on SN YAT027194 and After

2шт.

Refer to Fig 29.100.03 For Service Parts Breakdown

1шт.

84280676R

REMAN-GEARBOX

3230 SN YAT027194 and AFTER (7/09-)

2шт.

84280676C

CORE-GEARBOX

Return Number

1шт.

4

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB

4шт.

5

BN304226

BOLT

M16-2 X 45, FH, 10.9

72шт.

6

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.
