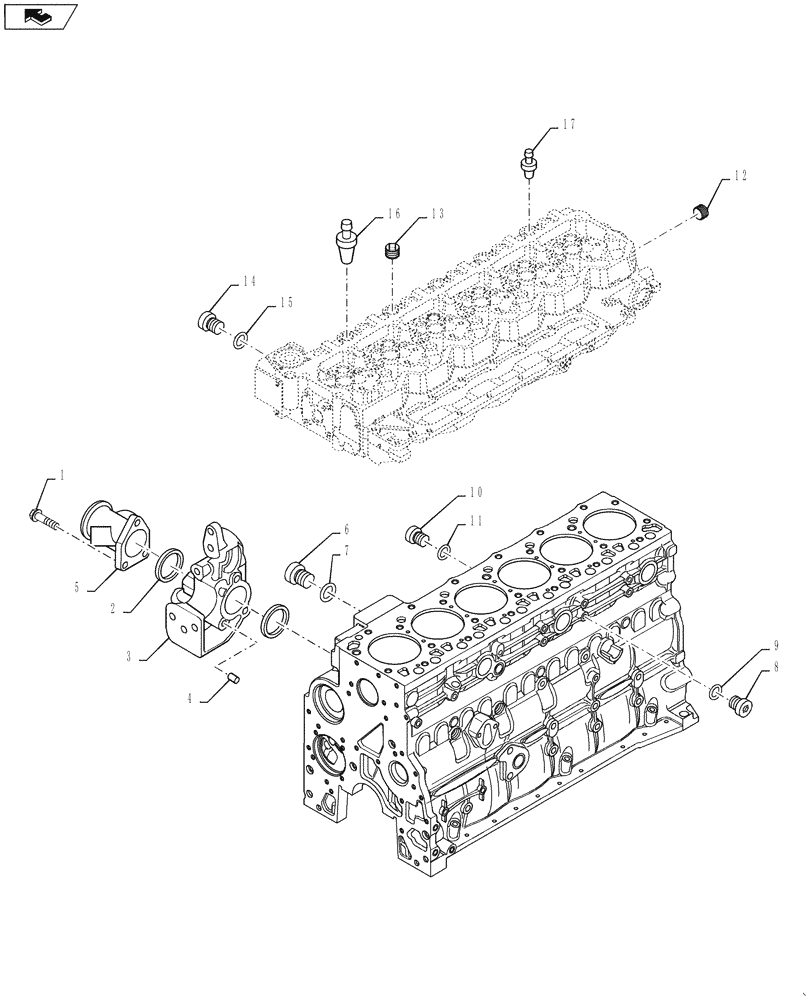

Запчасти Case IH 3230 (10.402.03) - ENGINE COOLING SYSTEM (10) - ENGINE

1

2852325

SCREW

M10 X 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

water inlet

1шт.

4

4895576

DOWEL

2шт.

5

2852468

TUBE

RIGID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2852496

PLUG,M18 x 1.5

2шт.

11

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

12

4895079

PIPE PLUG,3/4"-14

3шт.

13

4895078

PIPE PLUG,1/2"-14

3шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

16

4895118

FITTING

ENGINE COOLANT VENT

1шт.

17

4896924

HYD CONNECTOR

HOSE COUPLING

1шт.
