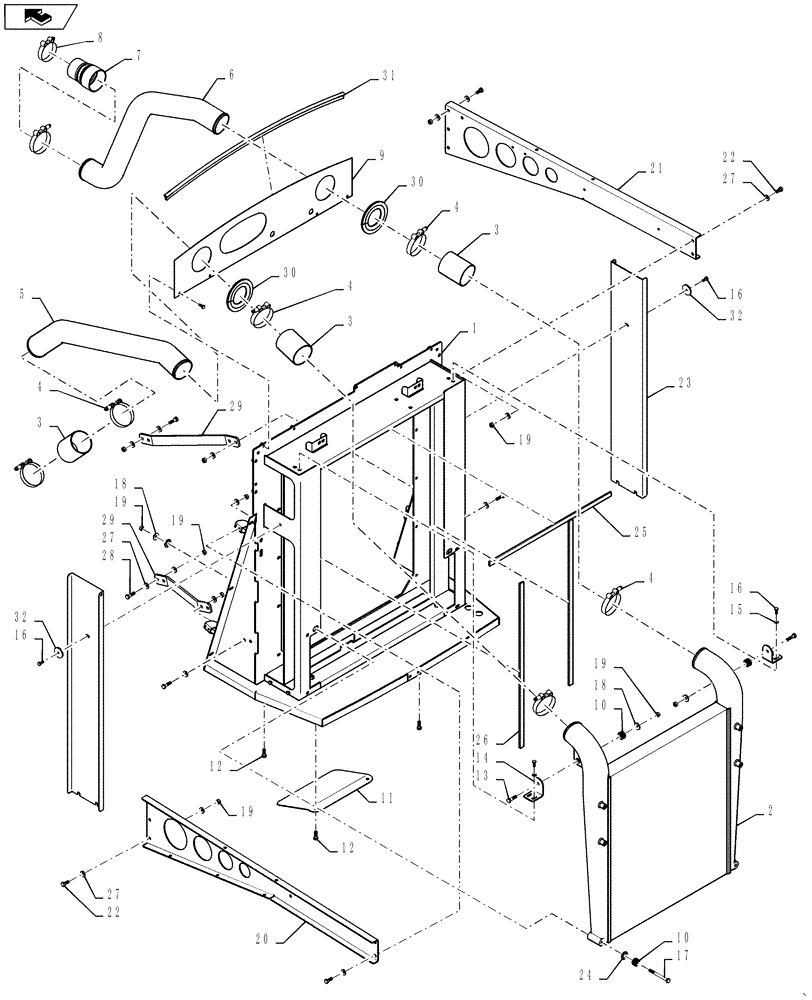

Запчасти Case IH 3230 (10.310.01) - PACKAGE, CHARGE AIR COOLER (10) - ENGINE

1

87558357

MOUNTING PLATE

Coolers

1шт.

2

259332A4

AFTERCOOLER

CHARGE AIR

1шт.

3

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

3шт.

4

87270795

CLAMP

T-Bolt 3.56" Spring

7шт.

5

87271488

TUBE,3.50" OD

CAC, HOT SIDE

1шт.

6

87271489

TUBE,3.50" OD

CAC, COLD SIDE

1шт.

7

87270662

INTAKE AIR HOSE

1шт.

8

BN300759

CLAMP

Constant Torque, 3.25"

1шт.

9

84138475

BAFFLE

RADIATOR,TOP

1шт.

10

434177A1

ISOLATOR

CAC, center bended

4шт.

11

NSS

NOT SOLD SEPARAT

ENGINE

1шт.

12

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

13

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

14

87270726

BRACKET

CAC MOUNT

2шт.

15

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

16

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

17

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

2шт.

18

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

22шт.

20

87558355

SUPPORT

RADIATOR, RH

1шт.

21

87558356

SUPPORT

RADIATOR, LH

1шт.

22

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

23

87270227

COVER

2шт.

24

BN50179

WASHER

CAC MOUNT

4шт.

25

87381207

6.35 X 19.05 X 680

1шт.

Order BN29710 and cut to length

1шт.

26

87381259

6.35 X 19.05 X 798

2шт.

Order BN29710 and cut to length

1шт.

27

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

36шт.

28

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

29

87559483

SUPPORT

COOLERS

2шт.

30

84138474

SEAL

BULB, CAC

2шт.

31

84138473

SEAL

BULB, CAC

1шт.

32

87529130

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

0.344X1.75X0.179 CST DOR

2шт.
