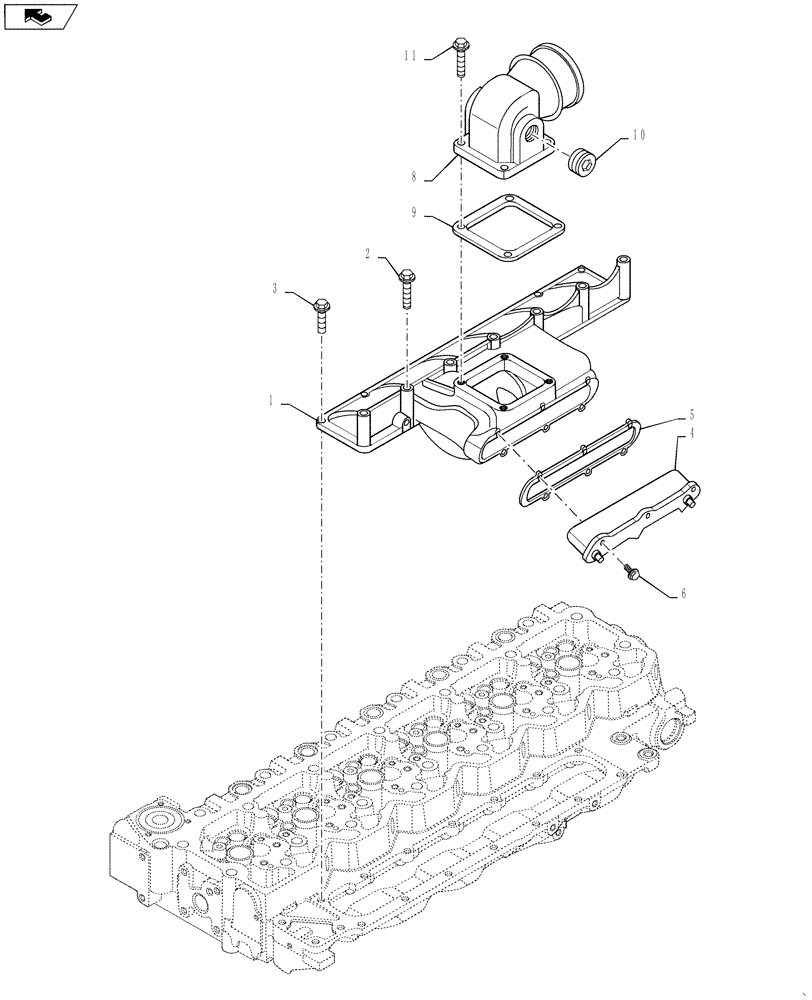

Запчасти Case IH 3230 (10.254.01) - INTAKE MANIFOLD (10) - ENGINE

1

2854534

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

3шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

7шт.

4

2854837

HEATER

1шт.

5

2854701

GASKET,0.8mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

6шт.

8

4895424

INLET MANIFOLD

1шт.

9

4899921

GASKET,1.2mm Thk

1шт.

10

4895079

PIPE PLUG,3/4"-14

2шт.

11

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.
