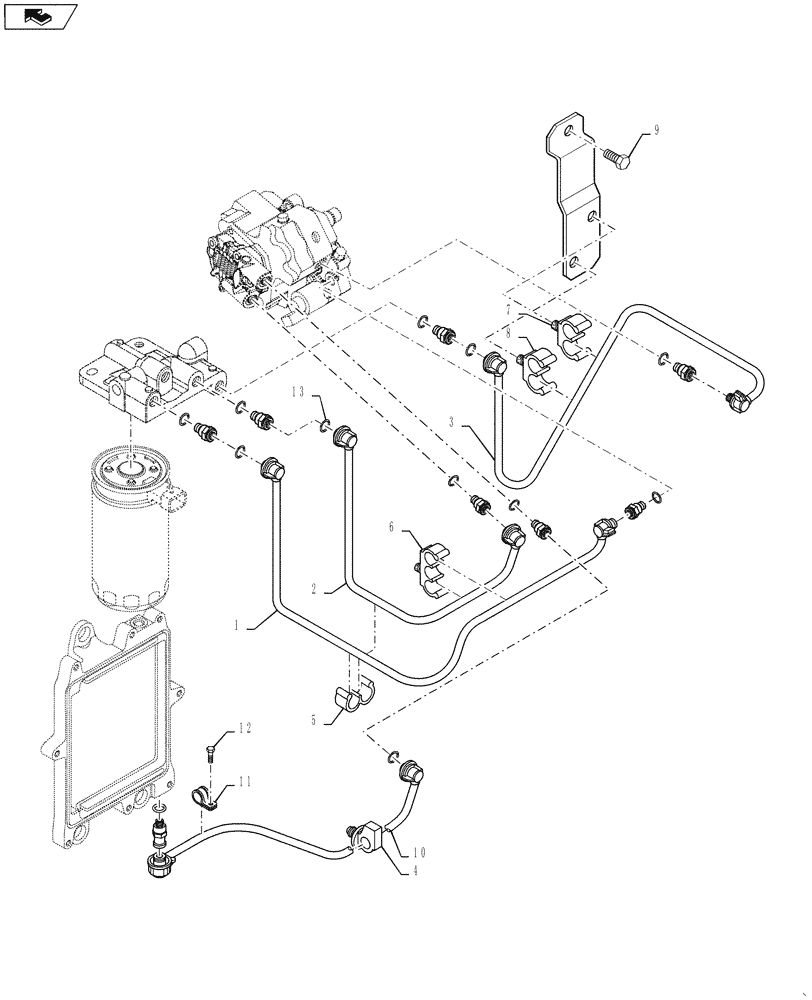

Запчасти Case IH 3230 (10.218.03) - FUEL INJECTION SYSTEM (10) - ENGINE

1

2852440

TUBE

Fuel Supply, Incl. Ref. 1A

1шт.

2

2852443

TUBE

Fuel Supply, Incl. Ref. 2A

1шт.

3

2852446

TUBE

Fuel Return, Incl. Ref. 3A

1шт.

4

4896996

CLAMP,8mm D Clamping pipes

1шт.

5

2852449

CLIP,8mm ID

2шт.

6

2852794

CLIP,8mm ID

1шт.

7

2852451

BRACKET

Fuel Plumbing

1шт.

8

2852452

CABLE CLIP

2шт.

9

4897277

SCREW

1шт.

10

4897817

TUBE

Fuel Supply, Incl. Ref. 10A

1шт.

11

4895462

CLAMP

1шт.

12

76195212

SCREW

1шт.

13

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

8шт.
