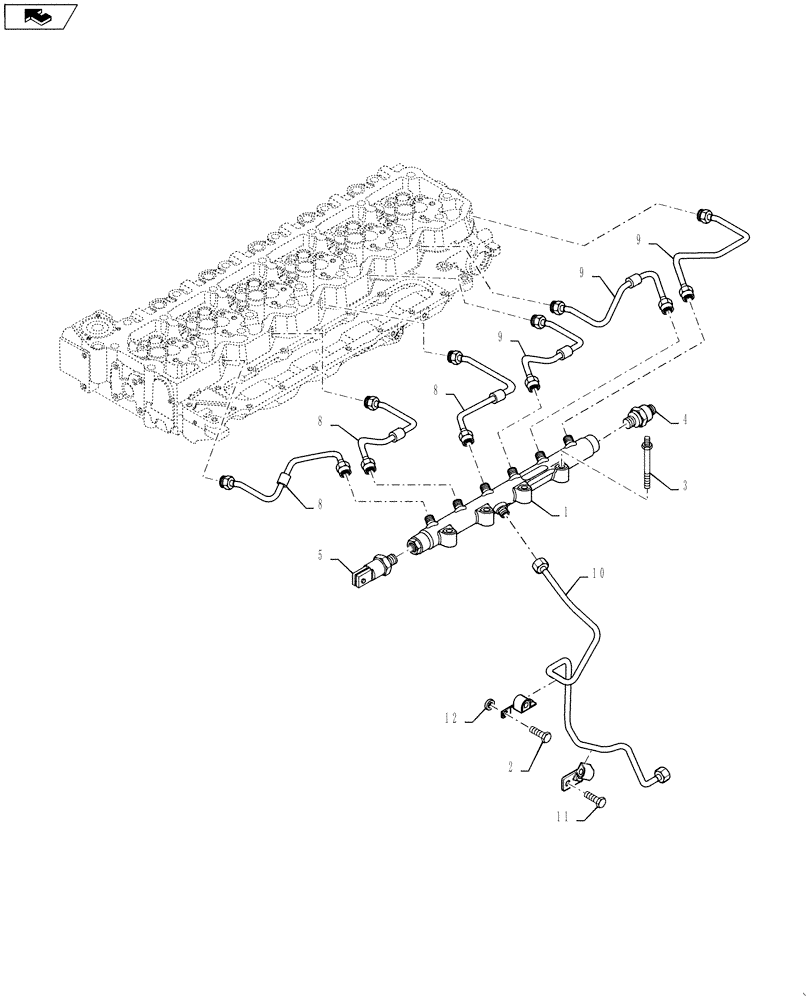

Запчасти Case IH 3230 (10.218.02) - FUEL INJECTION SYSTEM - FUEL, SUPPLY (10) - ENGINE

1

2854540

MANIFOLD

1шт.

2

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.

3

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

4шт.

4

2854543

VALVE PRESSURE RELIE

1шт.

5

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

PRESSURE

1шт.

7

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

8

2854549

INJECTION PIPE

FUEL SUPPLY

3шт.

9

2854544

INJECTION PIPE

FUEL SUPPLY

3шт.

10

2854552

INJECTION PIPE

FUEL SUPPLY

1шт.

11

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.

12

2852434

SPACER

1шт.
