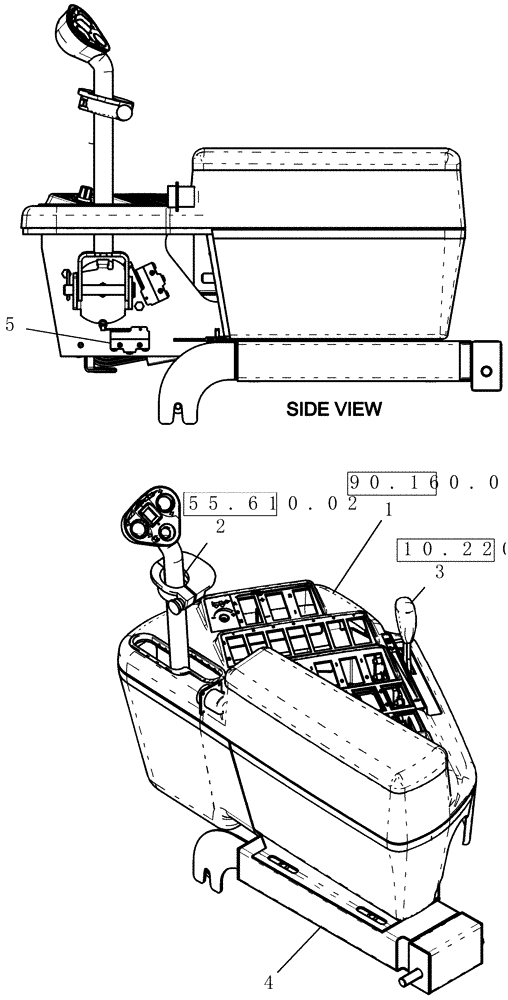

Запчасти Case IH 3230 (90.160.08) - RH CONSOLE GROUP PACKAGE - END YEAR 01/2009 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

RH Console, Sub Assembly

1шт.

Refer to 90.160.09

1шт.

2

NS

NOT SERVICED

Prop Control Lever Assembly

1шт.

Refer to 55.610.02

1шт.

3

NS

NOT SERVICED

RH Console Throttle Group

1шт.

Refer to 10.220.01

1шт.

4

NS

NOT SERVICED

RH Console Mount Assembly

1шт.

Refer to 90.160.09

1шт.

5

NS

NOT SERVICED

Package, RH Console Electric

1шт.

Refer to 90.160.11

1шт.

6

87728471

HARNESS

RH console, hyd

1шт.

7

87728474

HARNESS

product cab

1шт.

8

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

9

824-1403

NUT,M3, Cl 5

4шт.
