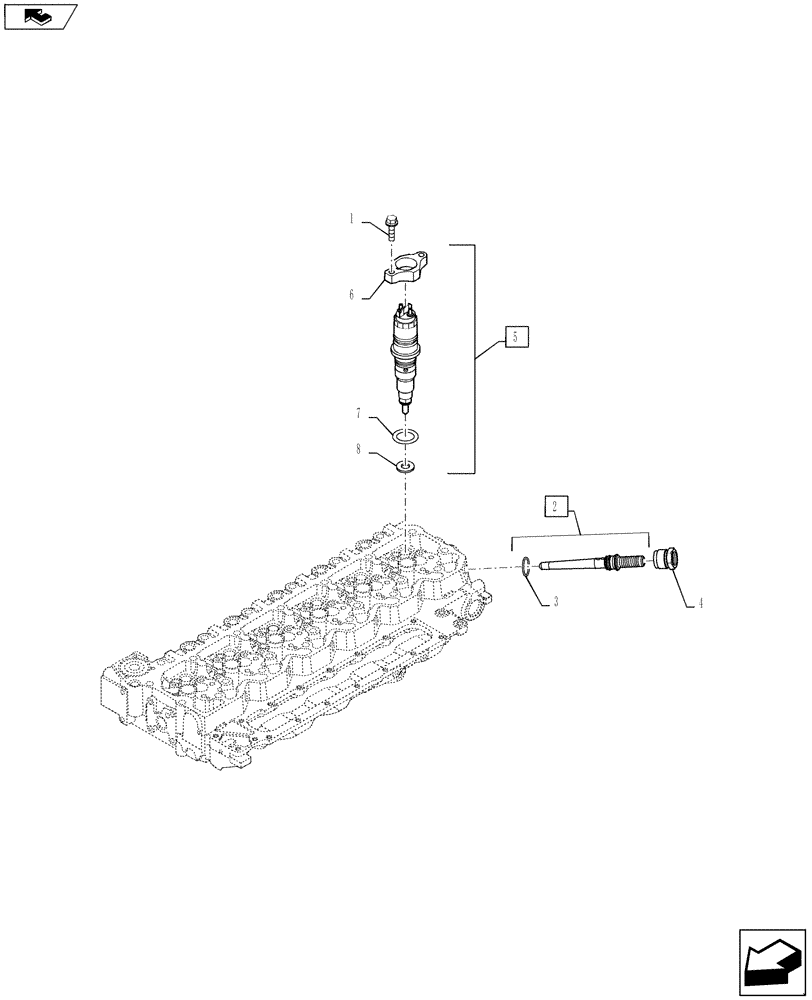

Запчасти Case IH 3230 (10.218.01) - FUEL INJECTION SYSTEM - INJECTOR (10) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

M6 X 35

12шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY

6шт.

Includes Ref. 3

1шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.

5

2855135

FUEL SYSTEM INJECTOR

assembly

6шт.

Includes Refs. 6, 7, 8

1шт.

5

2855135R

REMAN-FUEL INJECTOR

Reman For New PN 2855135

6шт.

5

2855135C

CORE-FUEL INJECTOR

Return Number

6шт.

6

2854609

BRACKET

RETAINER

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

20.9 ID x 3

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.
