(90.160.04[02]) - CAB TRIM, W/O CD

Запчасти Case IH 3230 (90.160.04[02]) - CAB TRIM, W/O CD (90) - PLATFORM, CAB, BODYWORK AND DECALS

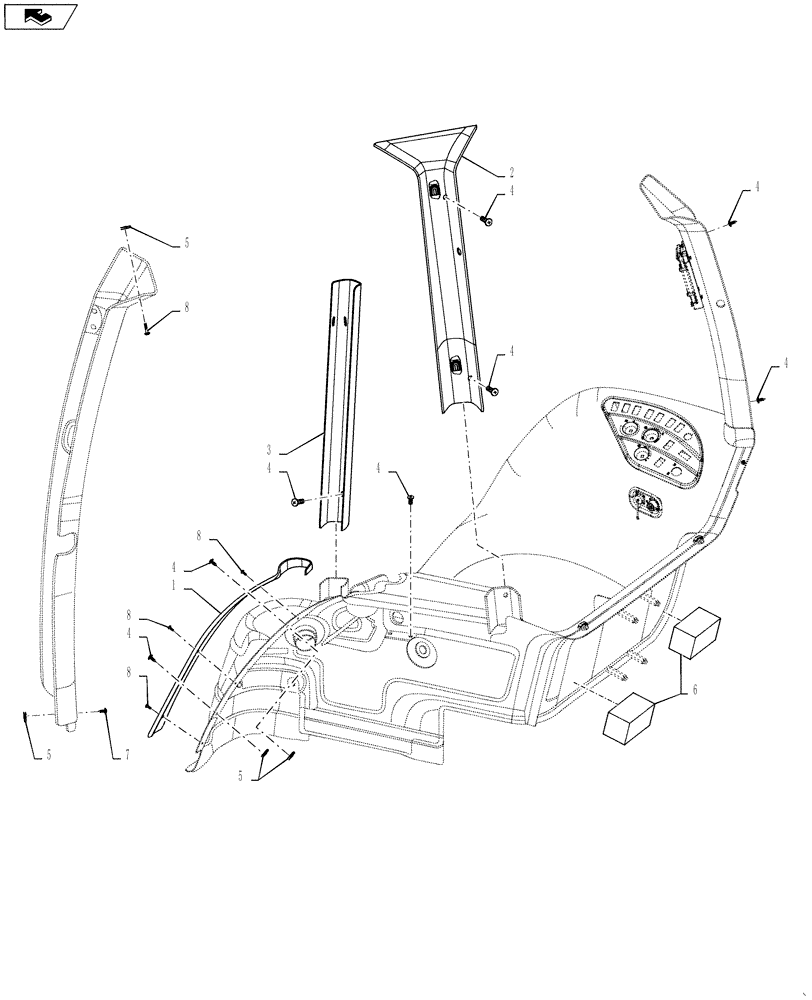

Схема запчастей Case IH 3230 - (90.160.04[02]) - CAB TRIM, W/O CD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
5
5
4
3
7
home
8
4
8
4
8
4
4
4
8
4
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87417629

TRIM PANEL

LH FENDER CLOSE-OUT STRIP

1шт.

2

355099A1

TRIM PANEL

COVER, LH C-POST

1шт.

3

355100A1

COVER

LH B-POST

1шт.

4

93199C1

FASTENER

RATCHET

15шт.

5

131-839

SPRING NUT,U, #10-16, Panel type

6шт.

6

87313017

FOAM

PAD, REAR WALL TRIM, AUTO GUIDANCE

2шт.

7

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

8

360362A1

CAPTIVE WASHER SCREW

10-16 x 1 wheat washer

6шт.
