Запчасти Case IH 3230 (90.160.04[01]) - CAB TRIM, W/O CD (90) - PLATFORM, CAB, BODYWORK AND DECALS

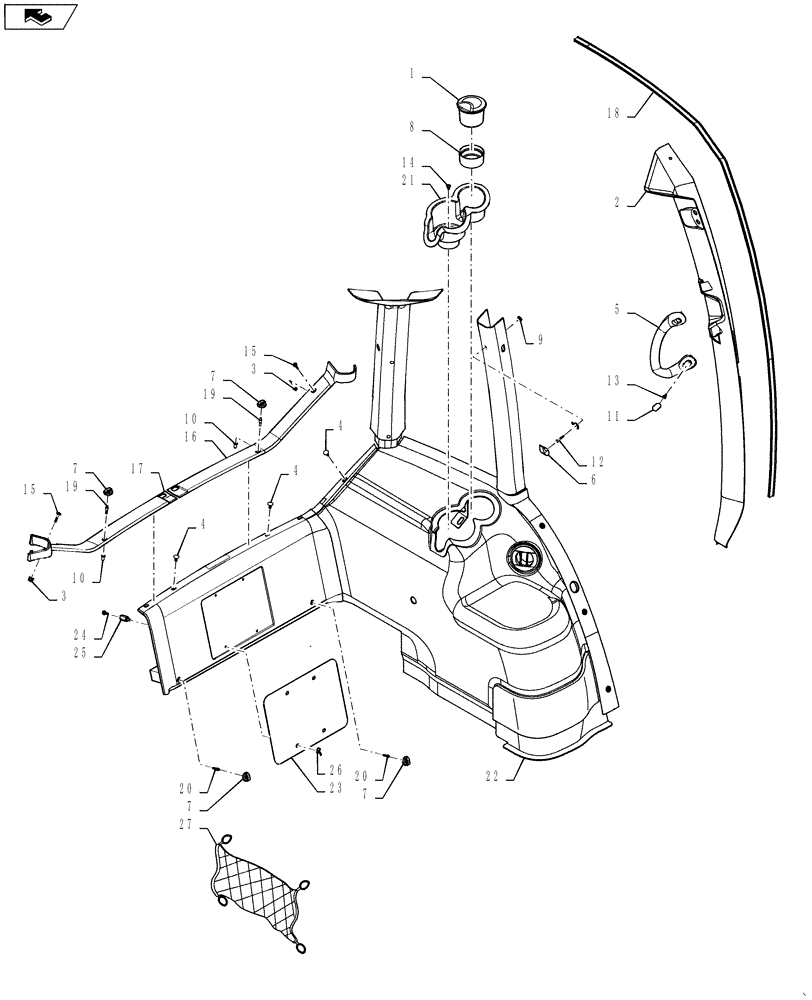

Схема запчастей Case IH 3230 - (90.160.04[01]) - CAB TRIM, W/O CD (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
15
7
9
21
2
24
19
17
8
14
26
12
20
10
23
11
19
1
15
4
18
7
27
16
13
6
4
4
25
7
3
20
7
3
10
22
5

Артикул

Название

Примечание

Количество

1

302456A1

ASH TRAY

1шт.

2

87417632

TRIM PANEL

COVER, LH A-POST

1шт.

3

322072A2

FASTENER

PLASTIC EXPANSION

2шт.

4

93199C1

FASTENER

RATCHET

15шт.

5

87413139

HANDLE

LH A-POST, GRAB

1шт.

6

3234176R1

COAT HOOK

1шт.

7

359037A1

HOOK

CARGO NET

4шт.

8

301901A1

INSERT

CUP HOLDER

1шт.

9

177269A1

SPRING NUT,M4.2

1шт.

10

322073A1

NUT

riv M6

2шт.

11

87413140

PLUG

GRAB HANDLE

2шт.

12

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

13

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

2шт.

14

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

15

360362A1

CAPTIVE WASHER SCREW

10-16 x 1 wheat washer

6шт.

16

87309897

TRIM PANEL

LH BULLHORN TRIM COVER, WHEAT

1шт.

17

87309901

TRIM PANEL

RH BULLHORN TRIM COVER, WHEAT

1шт.

18

87417638

RUBBER STRIP

ENTRYWAY

1шт.

19

87309745

STUD

CARGO NET HOOK, UPPER

2шт.

20

322413A2

STUD

CARGO NET HOOK

2шт.

21

358805A1

HOLDER

CUP

1шт.

22

426575A1

TRIM PANEL

LH FENDER, WITHOUT CD BOX

1шт.

23

87532159

COVER

PLATE, AUTO GUIDANCE

1шт.

24

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

25

87313014

SPACER,M8 x 1.25

AUTO GUIDANCE

4шт.

26

84814892

WING NUT,M6 x 1.0

4шт.

27

359036A1

NET,Cargo

REAR STORAGE CARGO NET

1шт.

Выбрано товаров: 27
