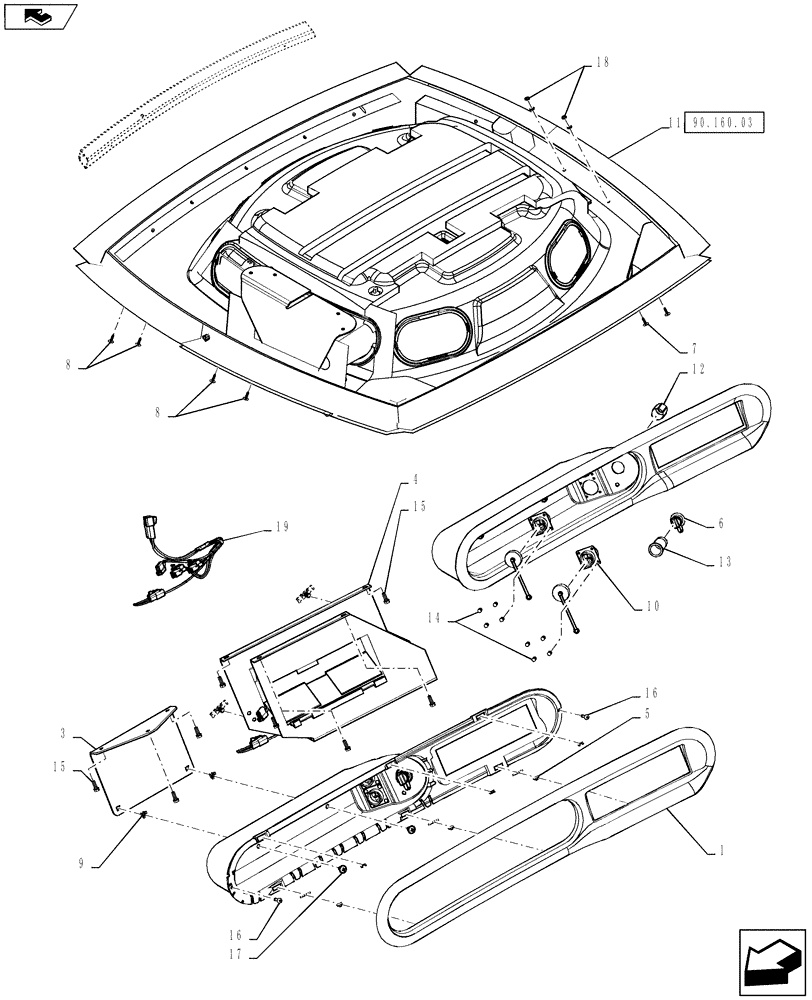

Запчасти Case IH 3230 (90.160.02) - DELUXE HEADLINER PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

358794A2

BEZEL

DLX STORAGE SHELF

1шт.

2

358795A1

BOX

STORAGE SHELF

1шт.

3

409205A2

BRACKET

STORAGE SHELF

1шт.

4

428264A5

BRACKET

RADIO MOUNTING

1шт.

5

308538A2

CLIP

STORAGE SHELF

6шт.

6

190812A1

COVER

CIGARETTE LIGHTER

1шт.

7

87621184

FASTENER

BUTTON TREE CLIP

12шт.

8

87441605

FASTENER

PINETREE CLIP, REMOVABLE

4шт.

9

322072A2

FASTENER

PLASTIC EXPANSION

2шт.

10

227739A2

POWER SOCKET

auxiliary power

2шт.

11

NSS

NOT SOLD SEPARAT

HEADLINER, DELUXE

1шт.

Refer to 90.160.03

1шт.

12

308905A1

CIGARETTE LIGHTER

OUTLET RETAINER

1шт.

13

308904A1

CIGARETTE LIGHTER

POWER OUTLET

1шт.

14

87016620

RIVET,Pop, 1/8" x .462"

8шт.

15

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

8шт.

16

86625223

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

17

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

19

87414960

HARNESS

Shelf

1шт.
