(90.156.03) - GLASS MOUNTING GROUP

Запчасти Case IH 3230 (90.156.03) - GLASS MOUNTING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

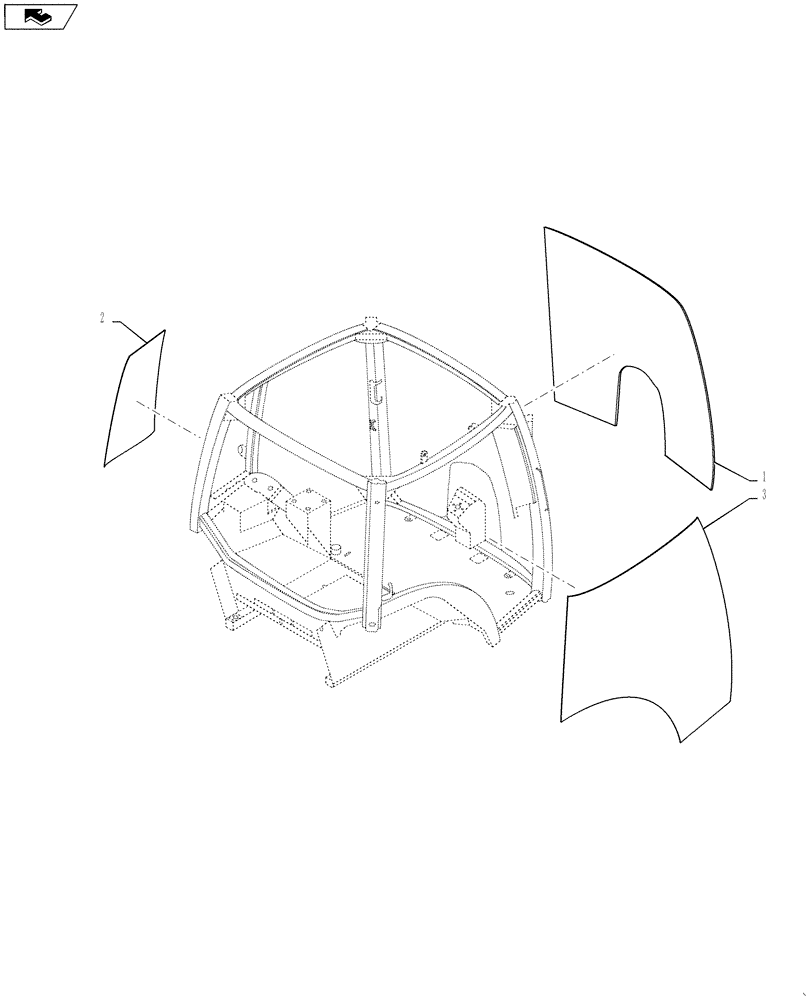

Схема запчастей Case IH 3230 - (90.156.03) - GLASS MOUNTING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87456379

WINDSHIELD

1шт.

2

242539A4

CAB GLASS ASSY

LH REAR WINDOW

1шт.

3

87417671

CAB GLASS ASSY

RIGHT WINDOW

1шт.

192013A4

PLASTIC PLUG

16.6mm, Translucent, Not Shown, For Ref 3

2шт.

192012A4

PLASTIC PLUG

28.6 mm, Translucent, Not Shown, For Ref 3

1шт.
