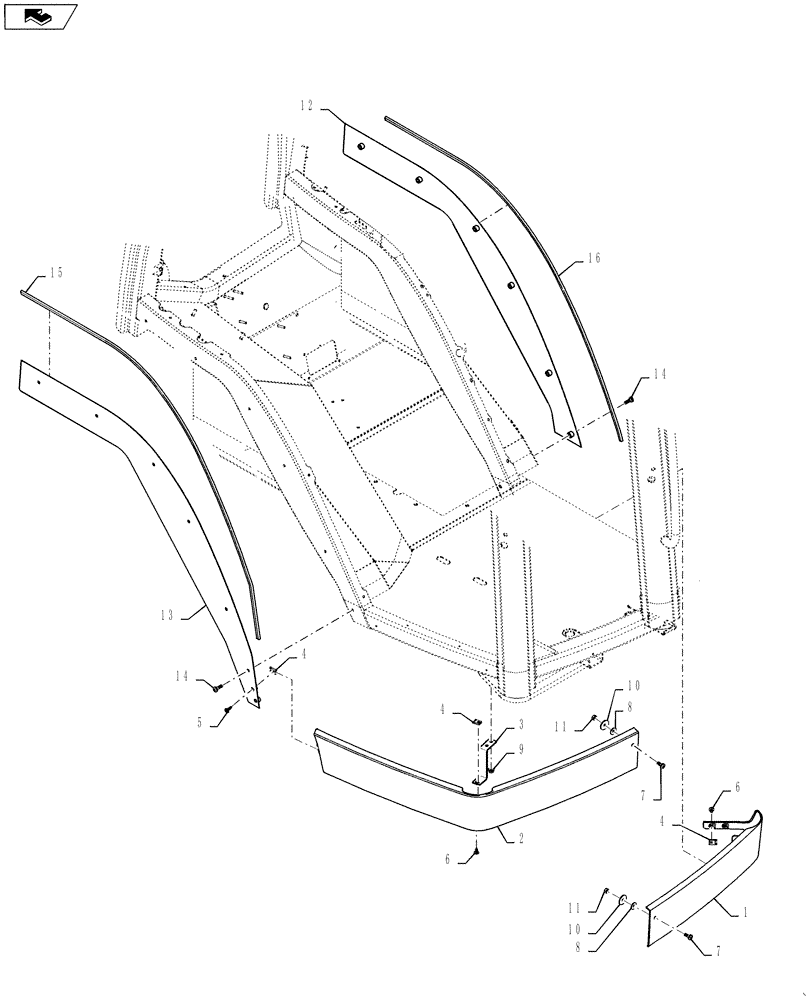

Запчасти Case IH 3230 (90.150.06) - CAB SKIRT GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87545531

SOFT TRIM

EXT TRIM, LH

1шт.

2

258866A4

PANEL

PANEL, FRT RH LWR CAB TRIM

1шт.

3

298464A1

BRACKET

EXT TRIM

1шт.

4

87016567

SPRING NUT,Tinn, U, #10

5шт.

5

1975919C1

SELF-TAP SCREW

#10-16 Truss Head With Washer

2шт.

6

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

3шт.

7

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

8

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

10 X 22 1.5MM PLAST

2шт.

9

86981461

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

10

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083 CST DOR

2шт.

11

9991588

NUT,M8 x 1.25, Cl 8

2шт.

12

87734572

SKIRT

LH

1шт.

13

87734573

SKIRT

RH

1шт.

14

87648718

SCREW,Phil Pan Hd, M8 x 25mm, Cl 4.8

M8 X 25 P/HD H 4.8 BZN

12шт.

15

87272128

SOFT TRIM

Rubber Edge, Bulk

1шт.

Cut 57.2" from bulk roll

1шт.

16

87272128

SOFT TRIM

Rubber Edge, Bulk

1шт.

Cut 53.1" from bulk roll

1шт.
