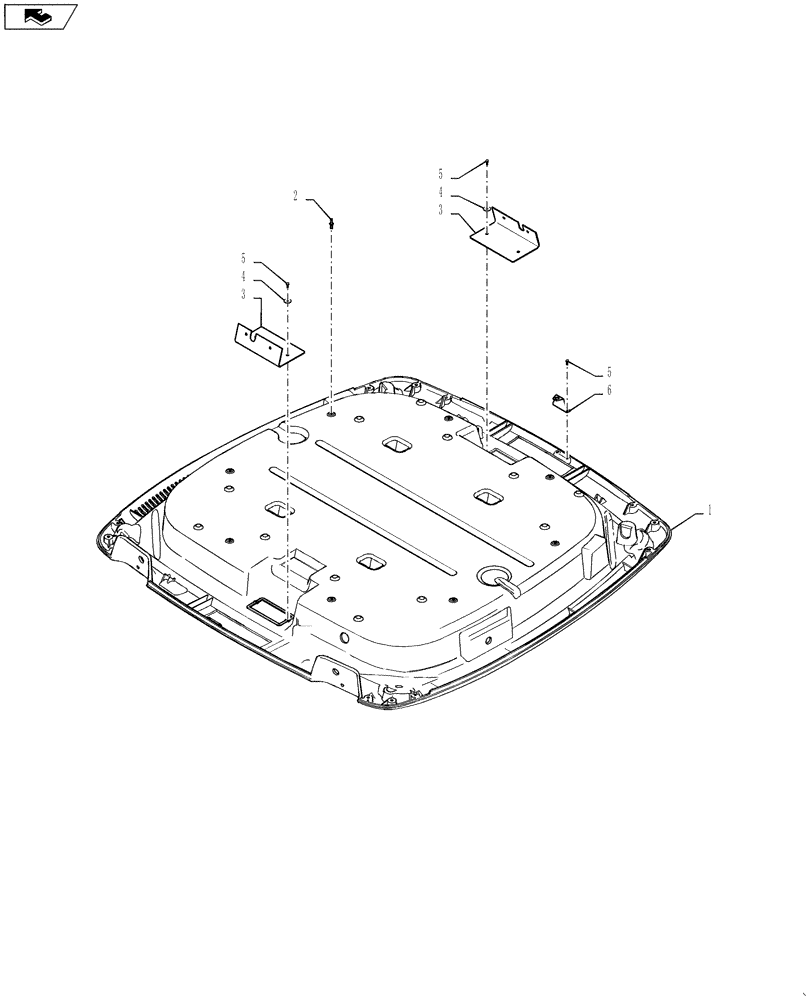

Запчасти Case IH 3230 (90.150.04) - ROOF ASSY, LOWER PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87419087

ROOF

Lower Panel

1шт.

2

237275A1

STUD

M8+9.0 H/L, STEEL, DBL END COLLAR

8шт.

3

401110A2

BRACKET

WIPER MOTOR SPACER

2шт.

4

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

5

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

8шт.

6

449074A1

BRACKET

ROOF RETAINING

2шт.
