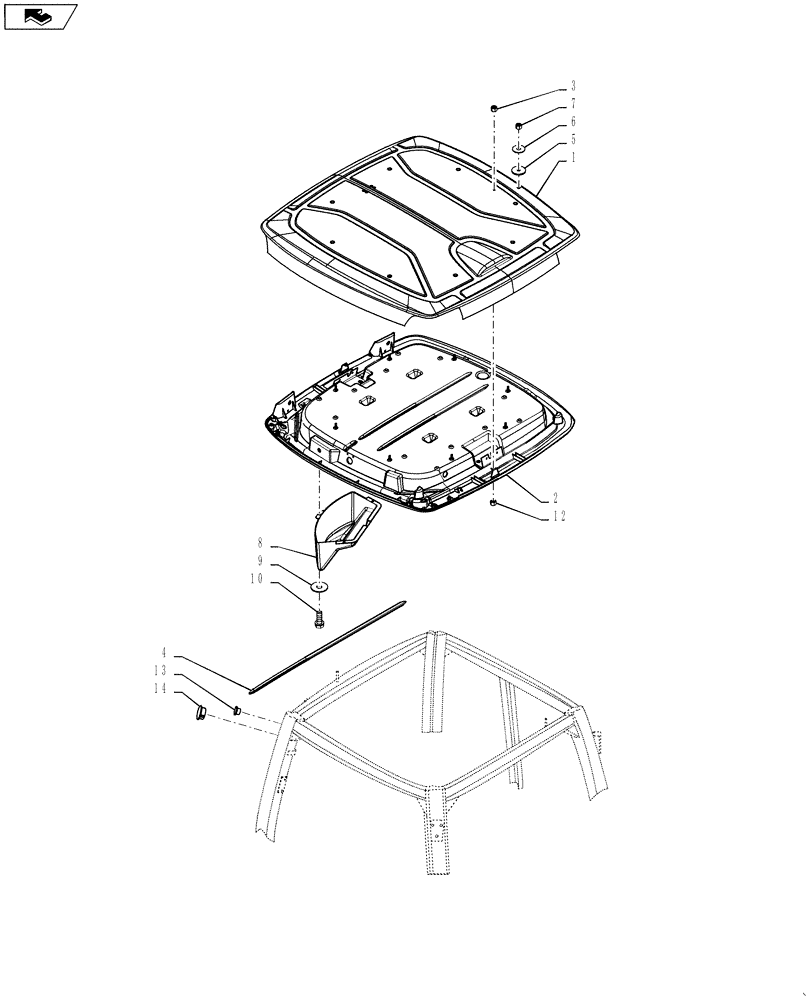

Запчасти Case IH 3230 (90.150.03) - CAB ROOF GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

433973A4

ROOF

UPPER PANEL NAO

1шт.

2

87419087

ROOF

Lower Panel

1шт.

3

441460A1

PLUG

9.5 mm Hole

1шт.

4

359321A1

GUARD

DUST

1шт.

5

87000585

WASHER,8mm ID x 35mm OD x 3mm Thk

Door Handle

8шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

8шт.

7

86528579

NUT,M8 x 1.25

8шт.

8

433800A1

HOUSING

SPEAKER ENCLOSUR

4шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

10

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

12шт.

11

365219A1

FOAM INSULATION

FOAM, A-POST/ROOF A

1шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

128209A1

PLUG

black plastic

2шт.

14

353-432

PLUG,7/8" Hole, Nylon

2шт.
