(90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH

Запчасти Case IH 3230 (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

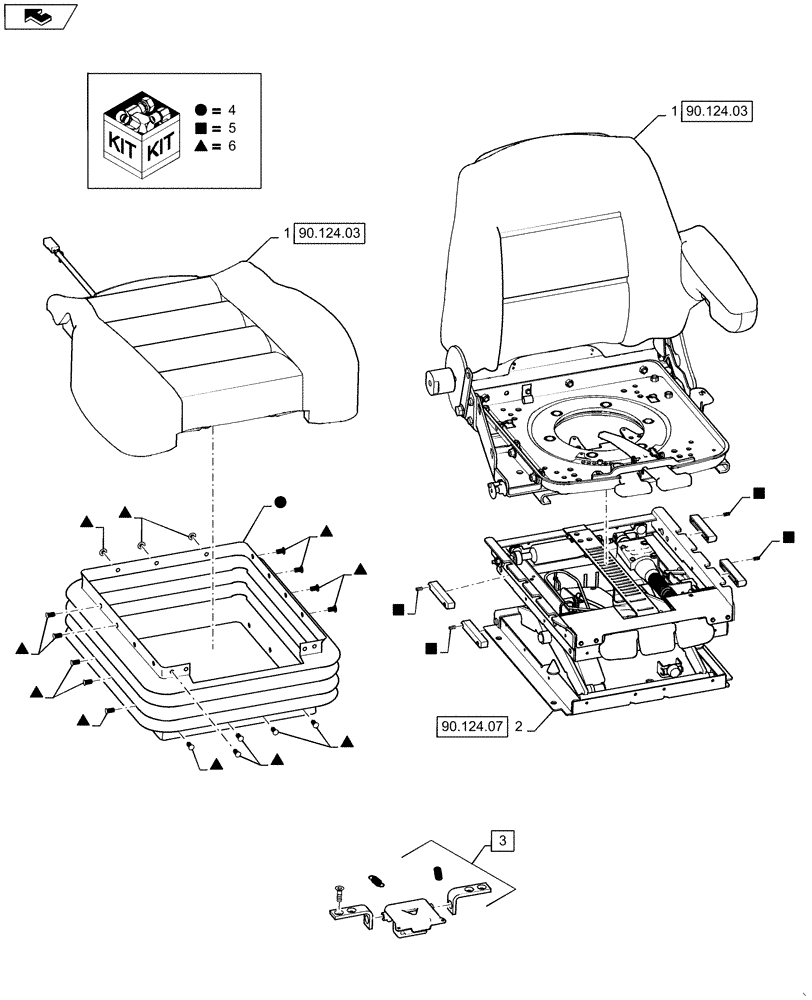

Схема запчастей Case IH 3230 - (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
6
6
6
6
5
1
6
5
6
4
home
90.124.07
90.124.03
90.124.03
6
5
4
6
2
3
1
6
5
6
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84162220

SEAT

Assembly, Top

1шт.

See Fig 90.124.03 For Service Parts Breakdown

1шт.

2

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts Breakdown

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.
