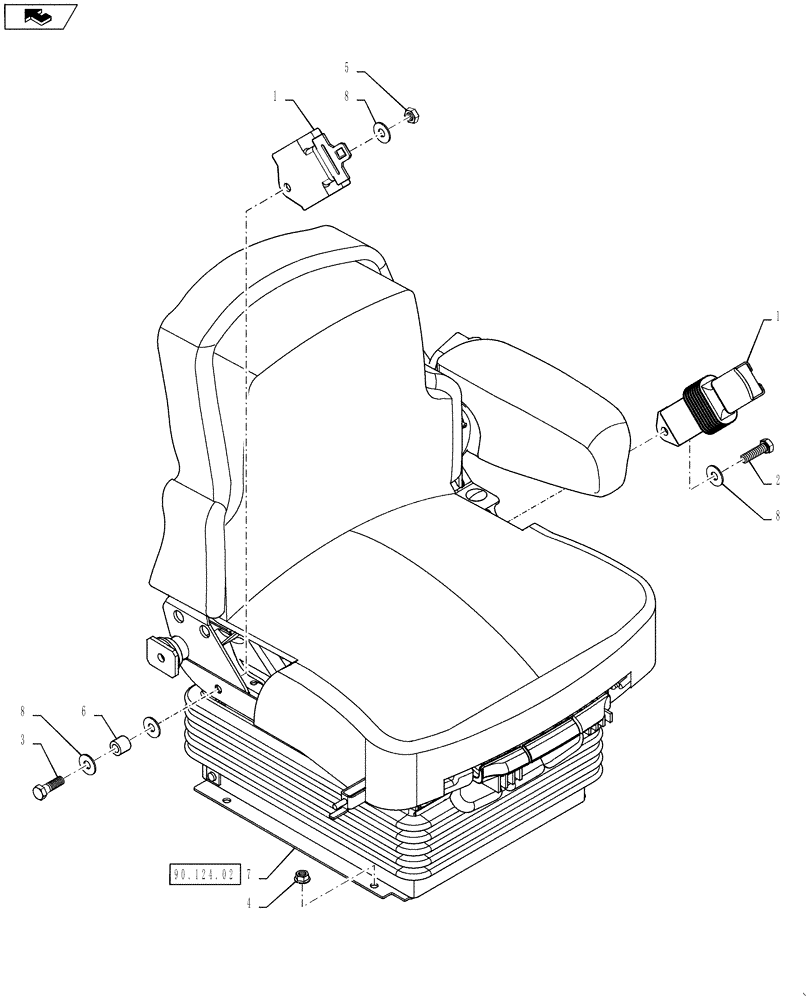

Запчасти Case IH 3230 (90.124.01) - DELUXE CLOTH SEAT MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

2

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

3

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

6

87313413

TUBE SPACER

.875" X .5" Steel Tube

1шт.

7

84138931

DRIVER SEAT

NEXGEN Seat & Suspension

1шт.

See Fig 90.124.02 For Service Parts Breakdown

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.
