(90.118.01) - WALKWAY GROUP, FRONT

Запчасти Case IH 3230 (90.118.01) - WALKWAY GROUP, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

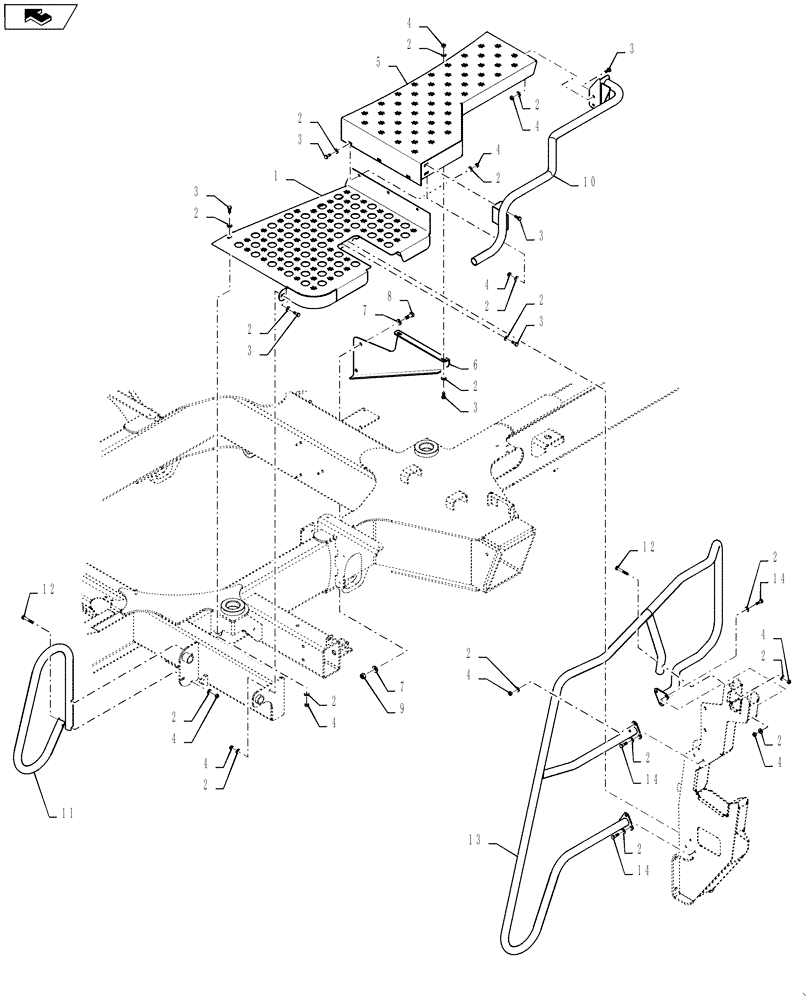

Схема запчастей Case IH 3230 - (90.118.01) - WALKWAY GROUP, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
2
7
4
10
2
3
11
4
3
3
3
4
2
4
6
4
2
3
4
2
13
4
3
2
2
2
14
2
3
2
2
12
2
4
9
2
4
1
7
2
5
2
2
14
2
12
14
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270661

EXTENSION

Walkway, Lower

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

40шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

22шт.

5

87271187

LOAD DECK

Walkway

1шт.

6

87474251

SUPPORT

Front Walkway

1шт.

7

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

8

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

2шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

10

84127235

RAIL ASSY.

Toe Deck

1шт.

11

84128609

HANDRAIL

Front Ladder

1шт.

12

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

13

84127234

HANDRAIL

Front

1шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.
