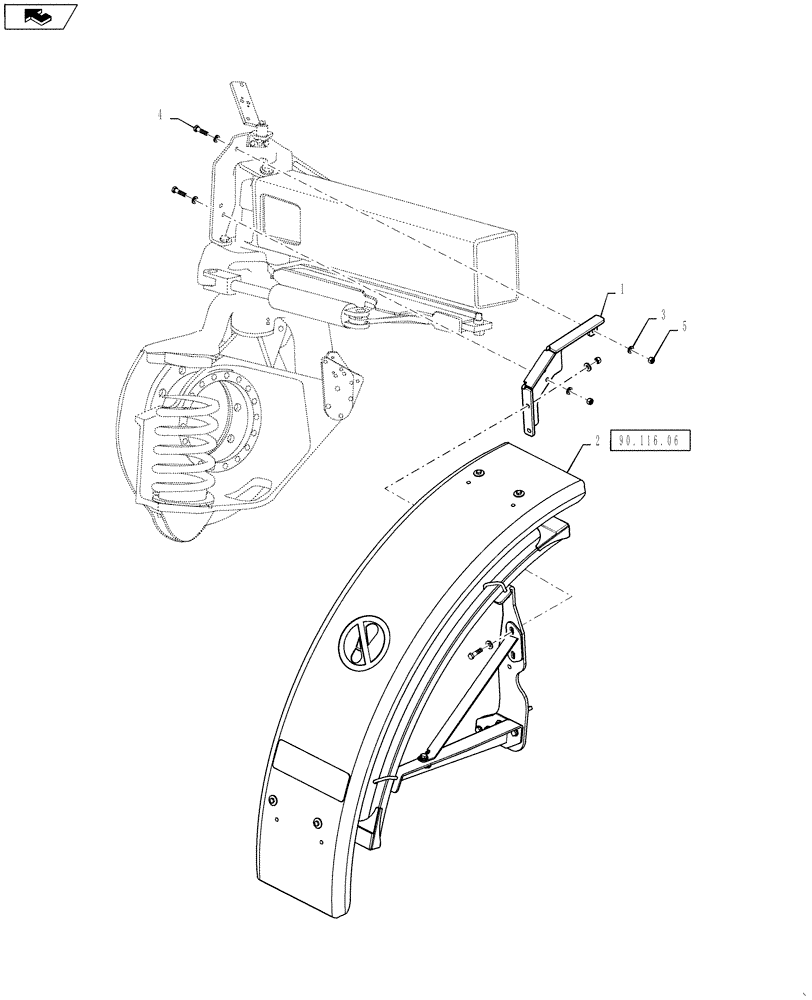

Запчасти Case IH 3230 (90.116.04) - FENDER GROUP, LH, BSN YCT032659 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86986706

BRACKET

Mount, Fender, LH

1шт.

2

86986458

FENDER ASSY.

Group, LH

1шт.

Refer to 90.116.06

1шт.

3

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

4

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

5

100038

NUT,M12 x 1.75, Cl 8

3шт.
