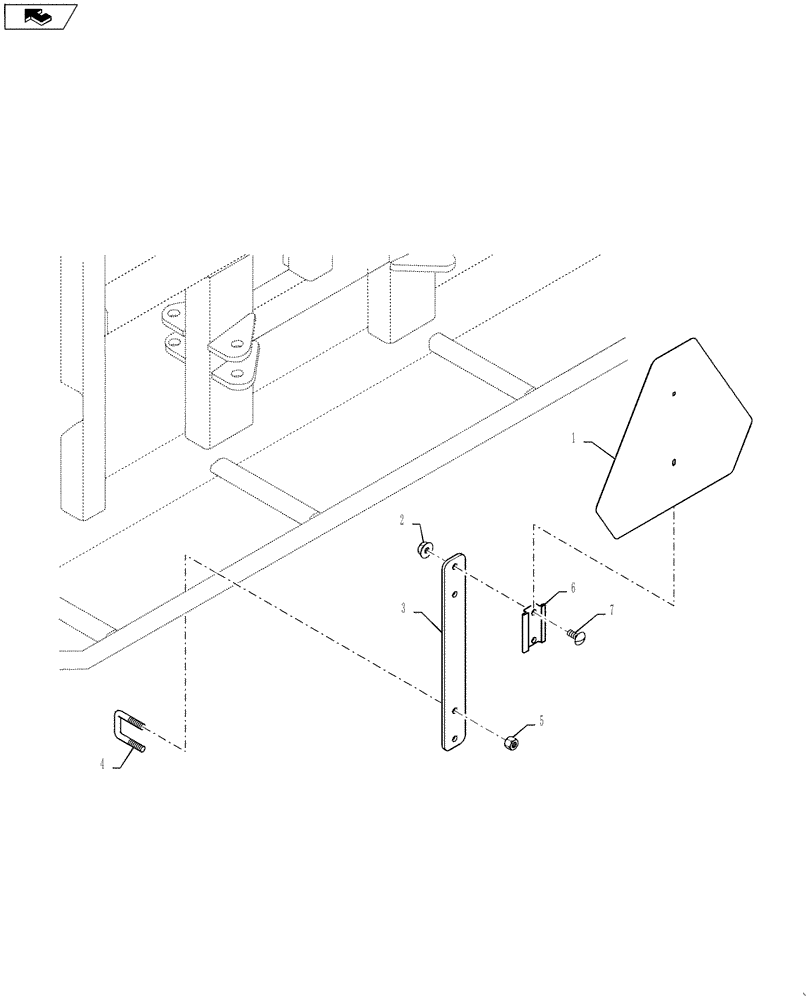

Запчасти Case IH 3230 (90.108.09) - SMV GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A59450

WARNING SIGN

Emblem Assembly, SMV

1шт.

2

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

3

BN313098

MOUNTING PARTS

SMV

1шт.

4

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

1шт.

5

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

2шт.

6

847590

BRACKET

socket, female, SMV emblem

1шт.

7

280616

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.
