(90.108.05[01]) - SAFETY GROUP

Запчасти Case IH 3230 (90.108.05[01]) - SAFETY GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

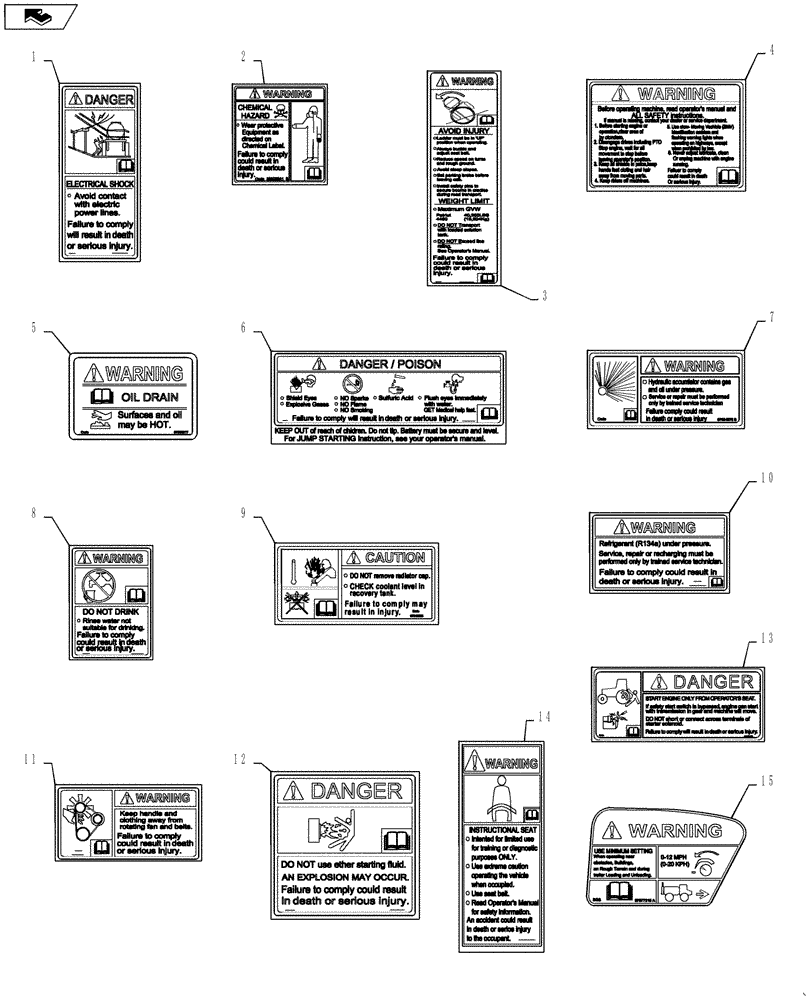

Схема запчастей Case IH 3230 - (90.108.05[01]) - SAFETY GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
13
11
3
14
8
2
9
6
1
15
5
10
4
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87535740

DECAL

electrical shock

1шт.

2

333088A1

DECAL

protective clothing

1шт.

3

87492826

DECAL

WARNING, WEIGHT

1шт.

4

86622073

WARNING DECAL

sign

1шт.

5

87266217

DECAL

Oil Drain

2шт.

6

87054970

DECAL

Danger/Poison, Battery

1шт.

7

87054976

WARNING DECAL

Accumulator

2шт.

8

87271146

DECAL

DO NOT DRINK

1шт.

9

87013363

DECAL

Caution, Radiator Cap

1шт.

10

87054969

WARNING DECAL

Refrigerant Under Pressure

1шт.

11

86501511

WARNING DECAL

Sign, Fan

2шт.

12

629086

DANGER DECAL

Do Not Use Ether Starting Fluid

1шт.

13

87033529

DECAL

Danger, Start Engine Only From Operator's Seat

1шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.

15

87577315

DECAL

speed, safety

1шт.
