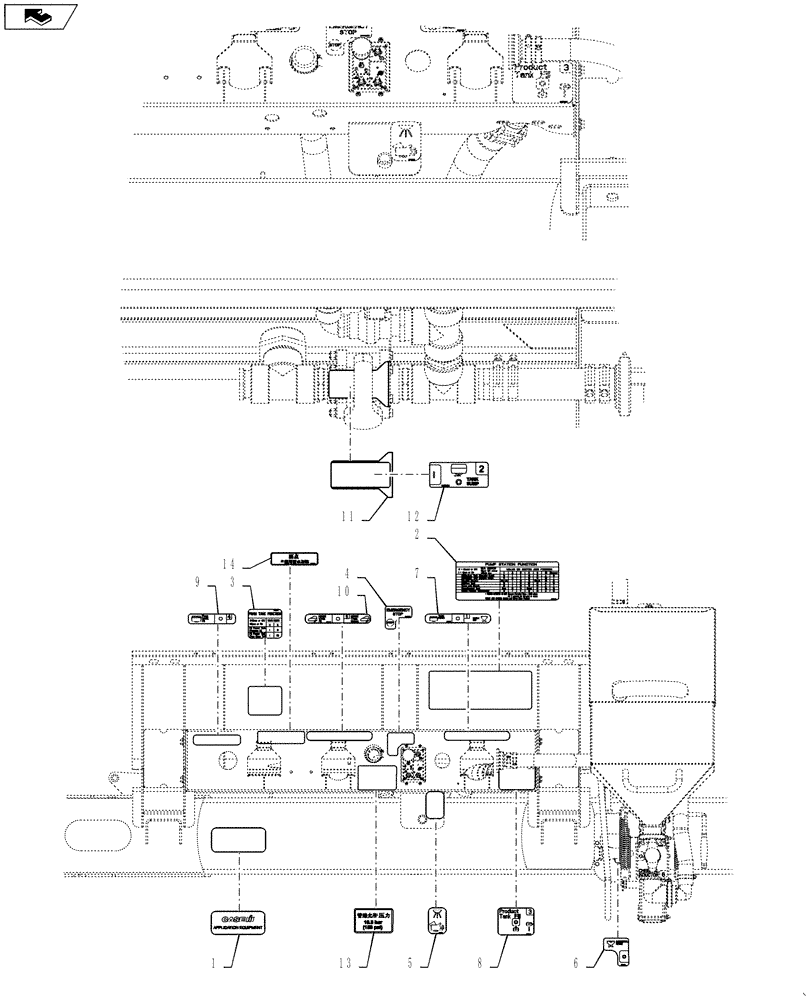

Запчасти Case IH 3230 (90.108.03) - APPLICATION GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87653647

DECAL

Case Application Eq

1шт.

2

343736A1

DECAL

Station Function 778D

1шт.

2

84212136

DECAL

Station Function, Chinese

1шт.

3

343189A1

DECAL

Foamer Function 778D

1шт.

3

84212141

DECAL

Foamer Function, Chinese

1шт.

4

344405A1

DECAL

Emergency Stop

1шт.

5

BN323729

DECAL

Hand Wash

1шт.

6

87271664

DECAL

Rinse, Chemical Inductor

1шт.

6

47982002

DECAL

Rinse, Chemical Inductor, Chinese

1шт.

7

87271661

DECAL

Rinse, Chemical Inductor

1шт.

7

84212144

DECAL

Rinse, Chemical Inductor, Chinese

1шт.

8

343184A1

DECAL

Product Tank Fill 778D

1шт.

8

84212148

DECAL

Product Tank Fill, Chinese

1шт.

9

87271665

DECAL

Foam Tank, Fill

1шт.

9

84212149

DECAL

Foam Tank, Fill, Chinese

1шт.

10

87271663

DECAL

Rinse Tank

1шт.

10

84212150

DECAL

Rinse Tank, Chinese

1шт.

11

84183741

MOUNT

Decal

1шт.

2" sump only

1шт.

11

84266816

MOUNT

Decal

1шт.

2" or 3" sump

1шт.

12

84178506

DECAL

Tank Sump

1шт.

12

84214914

DECAL

Tank Sump, Chinese

1шт.

13

84212156

DECAL

Circuit Pressure, Chinese

1шт.

14

84212157

DECAL

Clean Water Only, Chinese

1шт.
