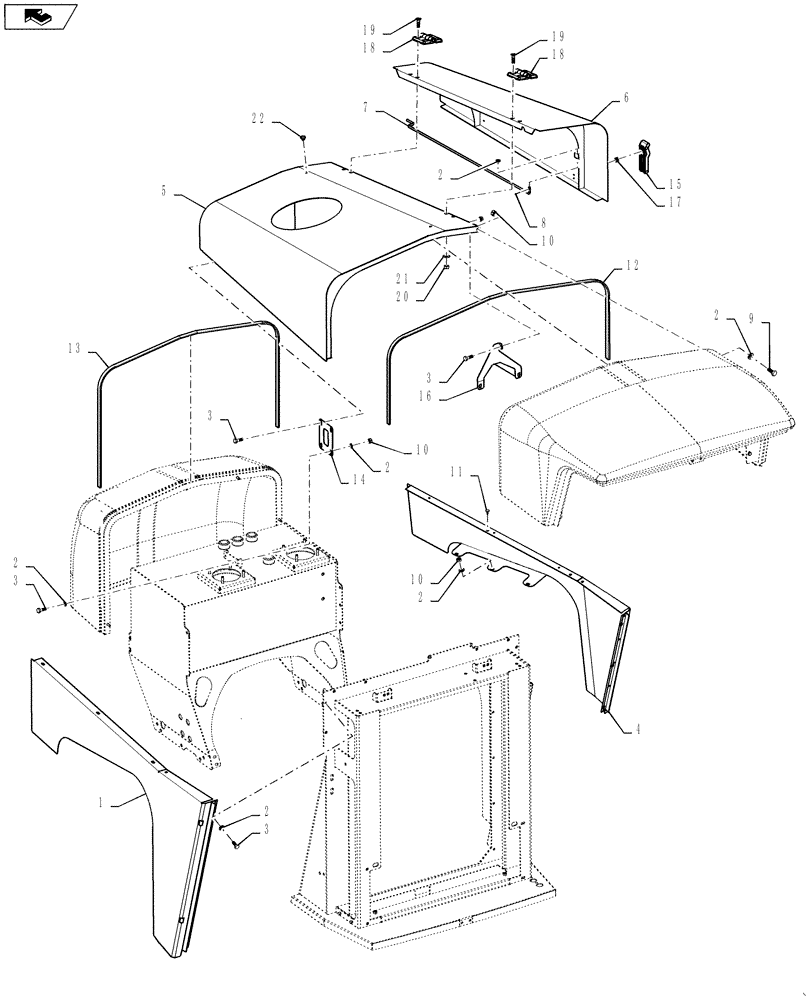

Запчасти Case IH 3230 (90.100.03) - HOOD GROUP, ENGINE, TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87269398

ENGINE HOOD PANEL

Side, RH

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

32шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

19шт.

4

87269313

ENGINE HOOD PANEL

Side, LH

1шт.

5

87682007

ENGINE HOOD

WELDMENT, RH

1шт.

6

87565612

HOOD

LH

1шт.

7

87270945

ROD

FRONT HOOD PROP

1шт.

8

733-2520

COTTER PIN,M2.5 x 20

1шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

9991588

NUT,M8 x 1.25, Cl 8

11шт.

11

87268898

RIVET

Nylon, Black, 1/4 X .80 Long

3шт.

12

BN29710

WEATHERSTRIP

1/4" x 3/4" x 50' Bulk Roll

1шт.

Cut 78" from bulk roll

1шт.

13

BN29710

WEATHERSTRIP

1/4" x 3/4" x 50' Bulk Roll

1шт.

Cut 82" from bulk roll

1шт.

14

87272795

BRACKET, SUPPORTING

MOUNT, HOOD

1шт.

15

BN307683

LATCH

SOFT, W/CONCEAL, KEEP

2шт.

16

87272806

SUPPORT

HOOD

1шт.

17

87017053

RIVET,Pop, .146" x .425"

8шт.

18

87566075

HINGE

BLACK SOUTHCO

2шт.

19

14441427

SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8

HEX, SOC, FLH, M6 X 20, 8.8 BZN

8шт.

20

353308

NUT,M6 x 1.0, Cl 8

8шт.

21

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

22

86013942

GROMMET

PLUG, RUBBER

2шт.
