(90.100.02) - HOOD MOUNT GROUP, ENGINE, FRONT & REAR

Запчасти Case IH 3230 (90.100.02) - HOOD MOUNT GROUP, ENGINE, FRONT & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

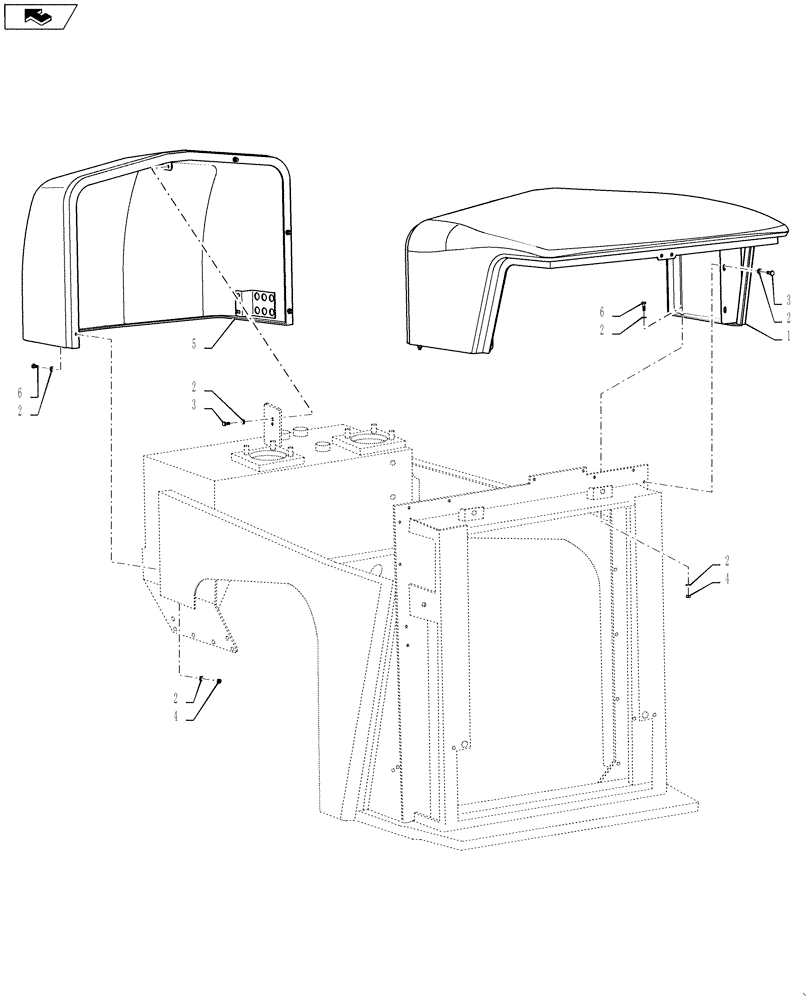

Схема запчастей Case IH 3230 - (90.100.02) - HOOD MOUNT GROUP, ENGINE, FRONT & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
2
home
4
2
3
2
4
2
3
5
2
6
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269306

ENGINE HOOD

FRONT, COMPLETE

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

26шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

4

9991588

NUT,M8 x 1.25, Cl 8

11шт.

5

87558353

ENGINE HOOD

REAR, COMPLETE

1шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.
