(90.100.01) - HOOD GROUP, FRONT

Запчасти Case IH 3230 (90.100.01) - HOOD GROUP, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

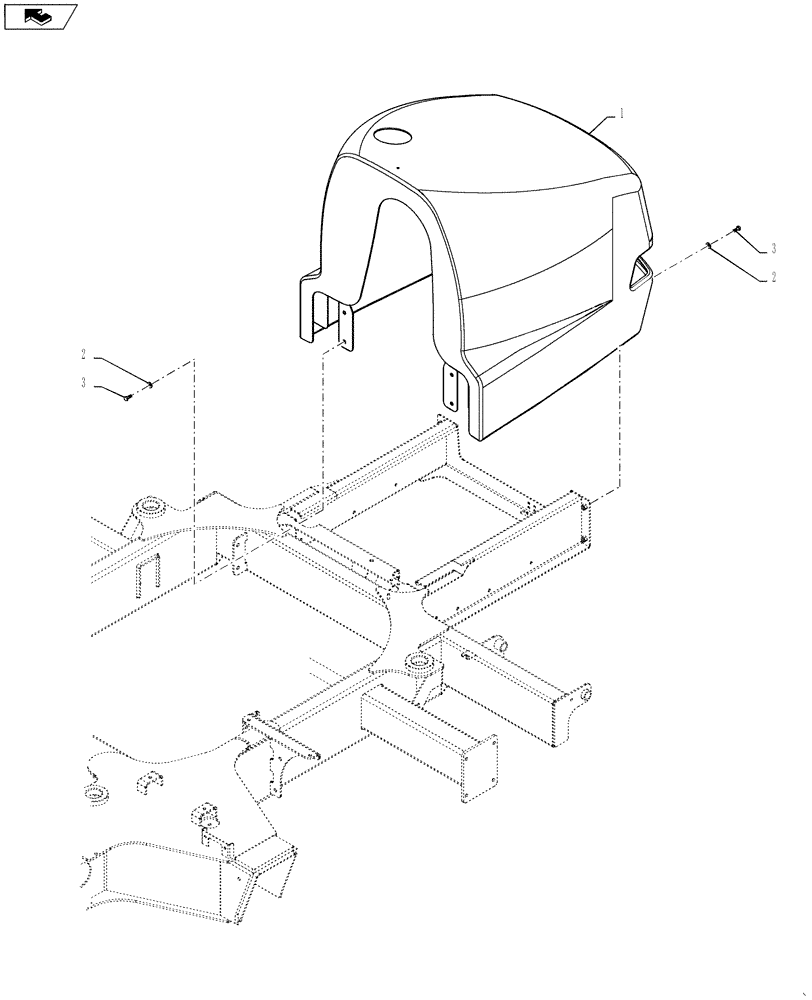

Схема запчастей Case IH 3230 - (90.100.01) - HOOD GROUP, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
home
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87592178

HOOD

Fuel Tank

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

Выбрано товаров: 3
