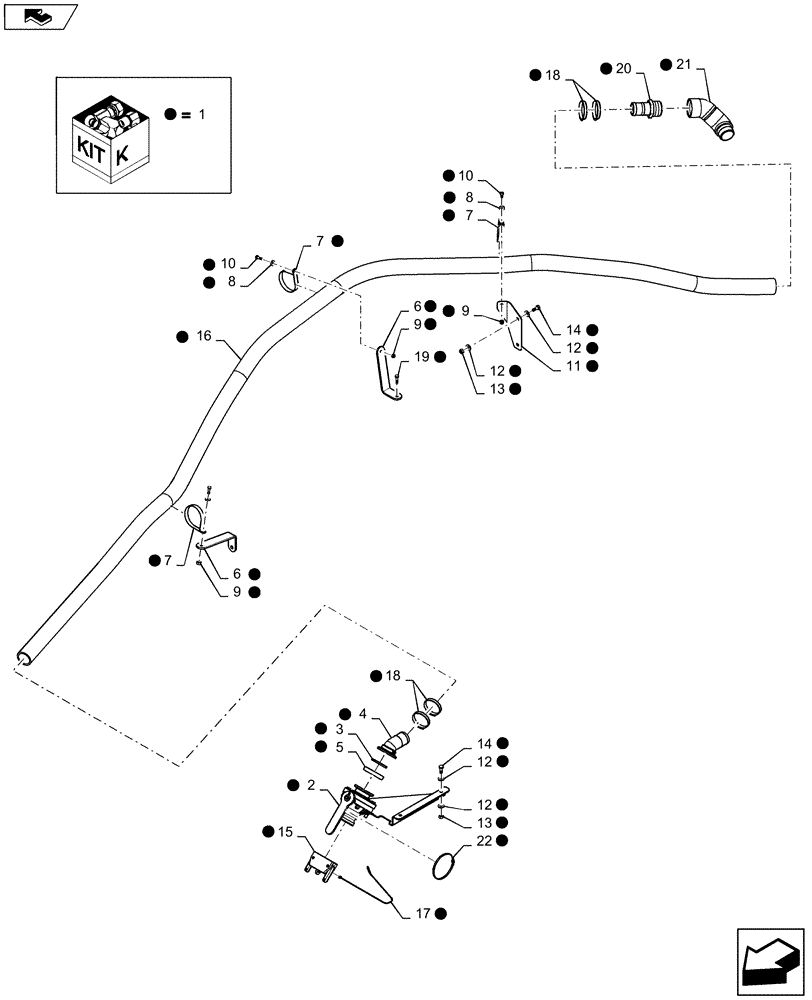

Запчасти Case IH 3230 (88.075.02) - 2" FRONT FILL DIA KIT (88) - ACCESSORIES

1

47424716

SERVICE KIT

Includes Ref 2-22

1шт.

2

47428080

MOUNT

1шт.

3

BN313772

GASKET,2" Full Port, EPDM

1шт.

4

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

1шт.

5

BN303199

CLAMP,2" Flange

1шт.

6

47493723

MOUNT

2шт.

7

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

11

84567648

MOUNT

1шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

14

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

15

BN22901

DUST CAP,2" Cam Lever Dust Cap

1шт.

16

47452121

HOSE

1шт.

17

416624A1

ROPE

1шт.

18

BN310449

CLAMP,50mm - 65mm

4шт.

19

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

20

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

1шт.

21

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

2шт.

22

306132C1

CABLE TIE,14.5" L

1шт.
