(88.075.01) - 3" FRONT FILL DIA KIT

Запчасти Case IH 3230 (88.075.01) - 3" FRONT FILL DIA KIT (88) - ACCESSORIES

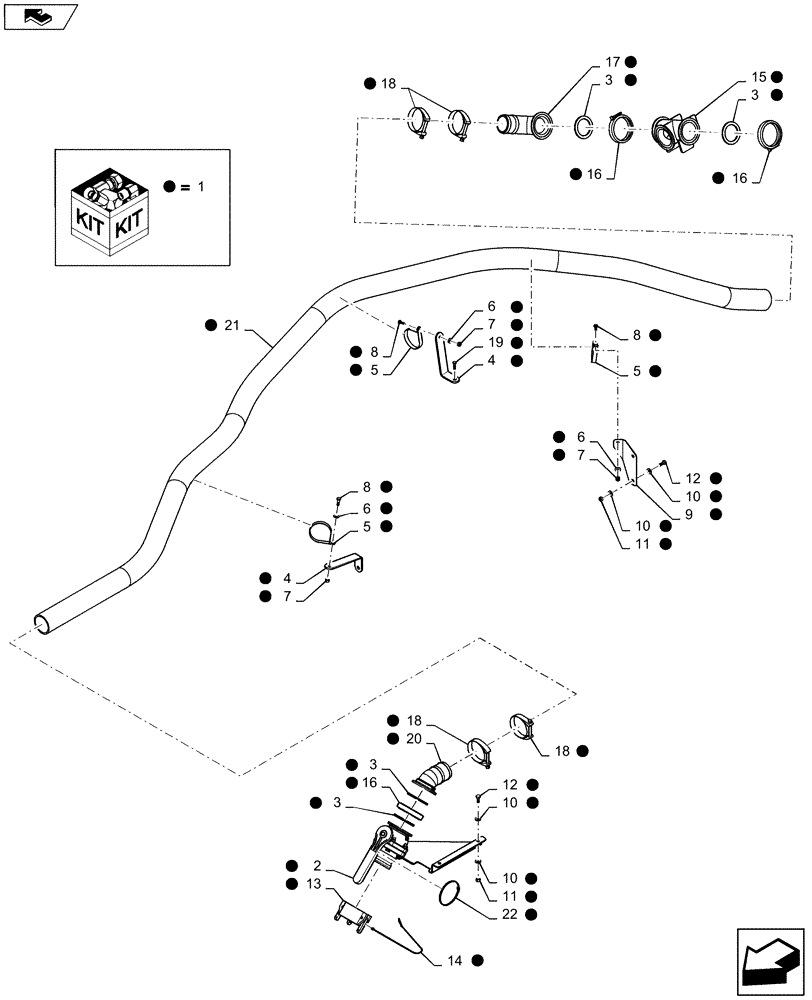

Схема запчастей Case IH 3230 - (88.075.01) - 3" FRONT FILL DIA KIT (88) - ACCESSORIES
8
1
22
6
11
5
1
13
6
1
1
1
16
1
1
1
1
3
16
21
10
19
1
20
15
1
1
1
14
1
3
17
8
1
12
1
5
home
10
1
12
7
1
10
7
18
1
1
1
1
1
1
11
1
5
6
1
1
1
18
1
2
1
3
1
4
18
1
4
1
1
1
10
1
8
1
1
1
9
1
16
1
1
1
3
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47424958

SERVICE KIT

1шт.

2

47422550

MOUNT

Front Fill

1шт.

2

47421018

VALVE,3" Flange x 3" Male Adapter

Stubby

1шт.

2

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

Not Shown

2шт.

3

BN321073

GASKET,3" Flange, EPDM

4шт.

4

47493723

MOUNT

2шт.

5

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

9

84567648

MOUNT

1шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

13

BN2393384

CAP

1шт.

14

416624A1

ROPE

1шт.

15

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

1шт.

16

BN321074

CLAMP,101.6mm

3шт.

17

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

1шт.

18

BN2403395

CLAMP

4шт.

19

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

20

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

1шт.

21

47449368

HOSE

1шт.

22

306132C1

CABLE TIE,14.5" L

1шт.
