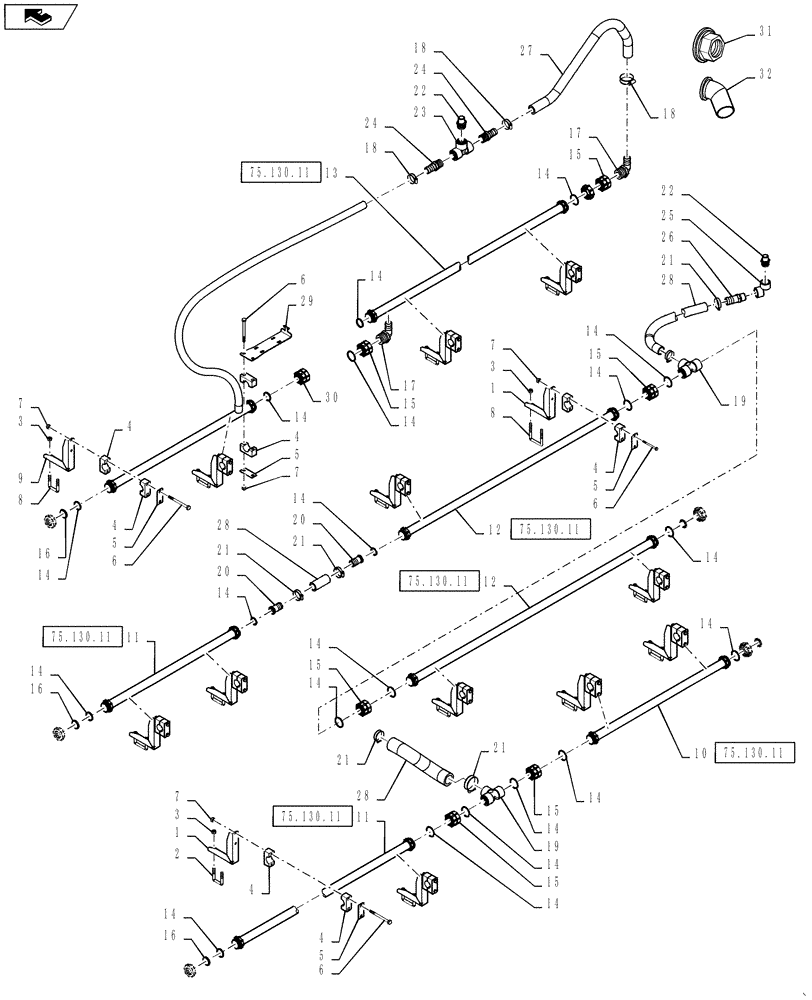

Запчасти Case IH 3230 (75.130.34) - SPRAYBAR PLUMBING, TWS, 90, 5 SECTION, 20/30 (75) - SOIL PREPARATION

1

BN323957

BRACKET

Spraybar Mount

20шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" SQ BND 1.31 IDX3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

48шт.

4

BN67054

CLAMP

1.315OD

26шт.

5

BN309483

PLATE

TOP

26шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

52шт.

7

BN55359

LOCK NUT,1/4"-20, SS

52шт.

8

BN319919

U-BOLT

SQ BND 2.06 IDX3/8

20шт.

9

87562807

BRACKET, SUPPORTING

SPRAYBAR

4шт.

10

84226604

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 5, TWS, ASM

1шт.

Refer to 75.130.11

1шт.

11

84226601

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 4, TWS, ASM

5шт.

Refer to 75.130.11

1шт.

12

84226605

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 8, TWS, ASM

4шт.

Refer to 75.130.11

1шт.

13

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

2шт.

Refer to 75.130.11

1шт.

14

84181302

SEALING RING

SEALRING 1-5/16 X 1-9/16 CL 5 RECT SEAL

30шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

CPLG,1.25FP,1.83AT,1TWS,PP

10шт.

16

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

10шт.

17

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

4шт.

18

BN310447

HOSE CLAMP

#20,304 SS

8шт.

19

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

3шт.

20

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

STR,1TWS1.25HB,PP

4шт.

21

BN320156

HOSE CLAMP

#24, Stainless Steel

10шт.

22

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1 X 3/4 POLY

4шт.

23

BN73629

TEE

1POLY PIPE

2шт.

24

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

POLY 1 NPT X 1 HS

4шт.

25

BN73742

ELBOW

90D,X1 POLY

2шт.

26

BN321509

FITTING

100MPT X 125HS

2шт.

27

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

24.64шт.

28

BN29563

HOSE

BULK - 1.25 EPDM, DISCHARGE

6.4'шт.

29

84265002

RETAINER

RETAINER, HOSE

2шт.

30

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

31

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1 TWS .75 FPPP

1шт.

32

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1шт.
