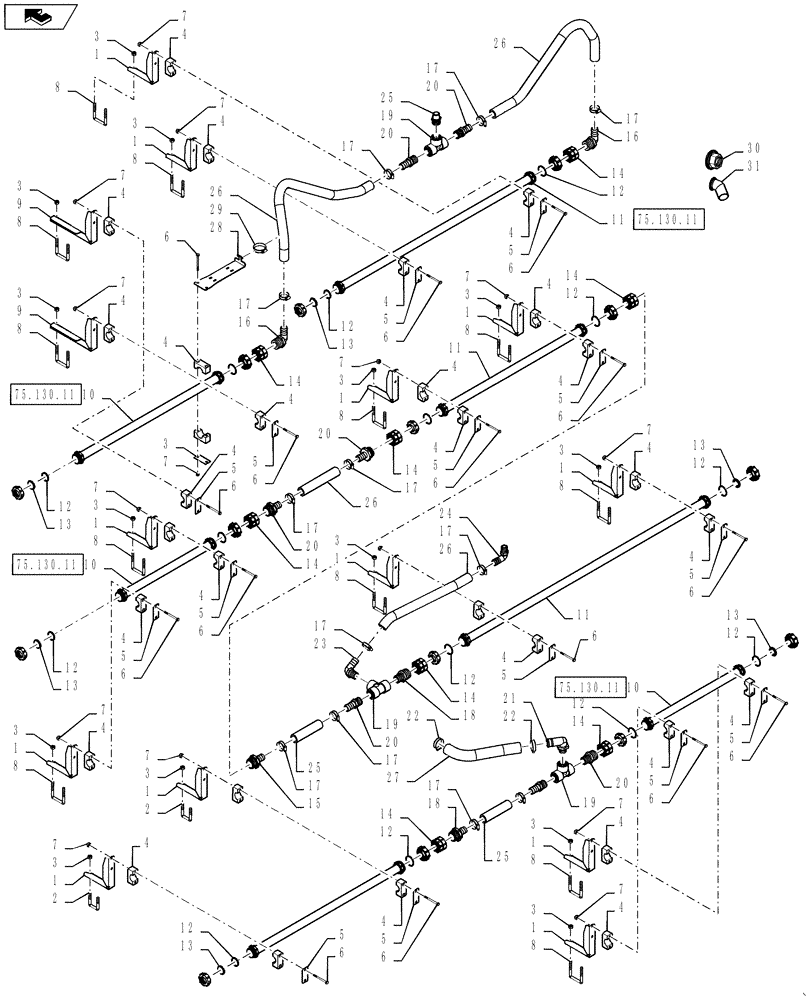

Запчасти Case IH 3230 (75.130.33) - SPRAYBAR PLUMBING, TWS, 90, 5 SECTION, 20 (75) - SOIL PREPARATION

1

BN323957

BRACKET

Spraybar Mount

20шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" SQ BND 1.31 IDX3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315OD

26шт.

5

BN309483

PLATE

TOP

26шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

52шт.

7

BN55359

LOCK NUT,1/4"-20, SS

52шт.

8

47650282

U-BOLT

SQ Shape, M10 THD, 82L x 62W

20шт.

9

87562807

BRACKET, SUPPORTING

SPRAYBAR

4шт.

10

84159733

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20X3,TWS,ASM

6шт.

Refer to 75.130.11

1шт.

11

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

6шт.

Refer to 75.130.11

1шт.

12

84181302

SEALING RING

SEALRING 1-5/16 X 1-9/16 CL 5 RECT SEAL

24шт.

13

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

10шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

CPLG,1.25FP,1.83AT,1TWS,PP

14шт.

15

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

7шт.

16

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

4шт.

17

BN310447

HOSE CLAMP

#20

22шт.

18

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1.25 X 1 POLY

3шт.

19

BN73629

TEE

1POLY PIPE

5шт.

20

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

POLY 1 NPT X 1 HS

7шт.

21

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

2шт.

22

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

23

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

24

BN73575

FITTING

3/4 X1 SHK X90

2шт.

25

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1 X 3/4 POLY

2шт.

26

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

29.8'шт.

27

BN29563

HOSE

BULK - 1.25 EPDM, DISCHARGE

1.75'шт.

28

84265002

RETAINER

RETAINER, HOSE

2шт.

29

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

30

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1 TWS .75 FPPP

1шт.

31

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1шт.
