Запчасти Case IH 3230 (75.130.17) - CHAMBER GROUP, DUAL DROP (75) - SOIL PREPARATION

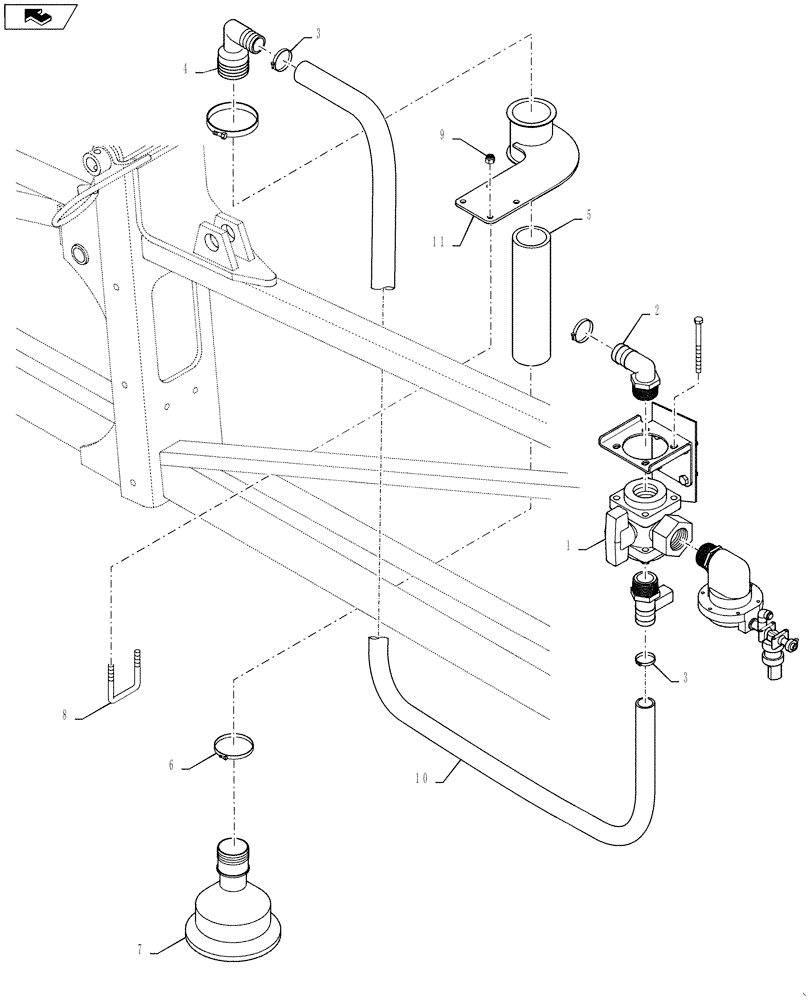

Схема запчастей Case IH 3230 - (75.130.17) - CHAMBER GROUP, DUAL DROP (75) - SOIL PREPARATION
2
9
3
home
8
5
10
11
7
3
6
4
1

Артикул

Название

Примечание

Количество

1

BN311011

VALVE,1-1/4" NPT Female; Full Port

3-Way, 1-1/4" NPT

1шт.

2

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

3

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

4

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

5

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

6

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

7

BN2403252

BELL

Foam Marker

1шт.

8

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN322089

HOSE,1.25" ID x 32.00"

Type K

1шт.

11

BN313193

MOUNTING PARTS

Inner Boom Foam Drop Bracket

1шт.

Выбрано товаров: 11
