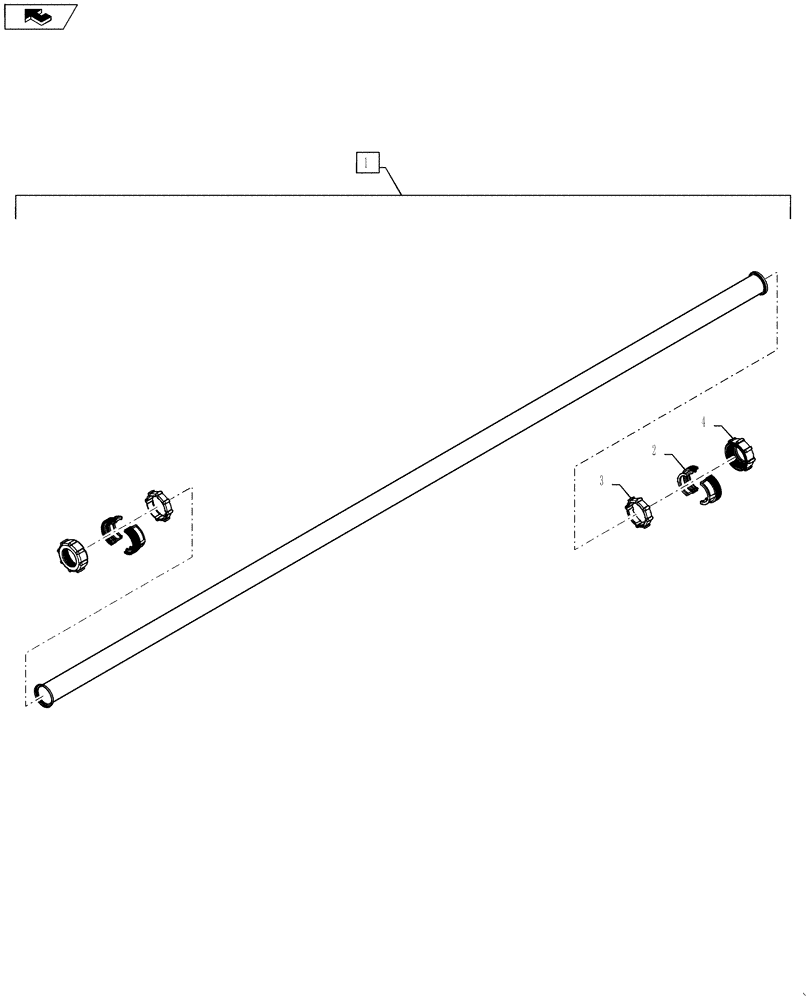

Запчасти Case IH 3230 (75.130.11) - SPRAYBARS - 90, 5 SECTION, 20 & 20/30 (75) - SOIL PREPARATION

1

84159733

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20" Spacing X 3 Nozzle, TWS, ASM, 44-1/2" Long

1шт.

1

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

1шт.

1

84226601

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 4 Nozzle,TWS, ASM, 55" Long

1шт.

1a

84226602

BOOM

Spraybar, 20/30 X 4 Nozzle, TWS, 55" Long

1шт.

1

84226604

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 5 Nozzle,TWS, ASM, 65-7/8" Long

1шт.

1a

84226606

BOOM

Spraybar, 20/30 X 5 Nozzle, TWS, 65-7/8" Long

1шт.

1

84226605

BOOM,20/30" Nozzle Spacing

SPRAYBAR, 20/30 X 8 Nozzle,TWS, ASM, 115-1/2" Long

1шт.

1a

84226607

BOOM

Spraybar, 20/30 X 8 Nozzle, TWS, 115-1/2" Long

1шт.

1

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

1шт.

1a

87673497

BOOM

Spraybar, 20/30, Spacing x 7 Nozzle, TWS, 106" Long

1шт.

2

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

3

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

4

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.
